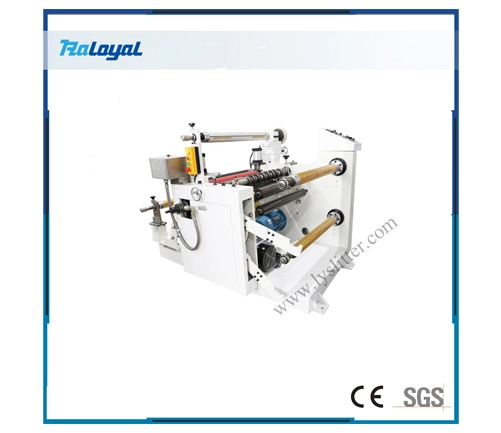

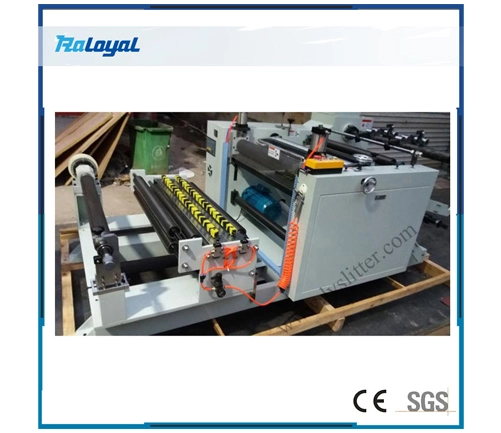

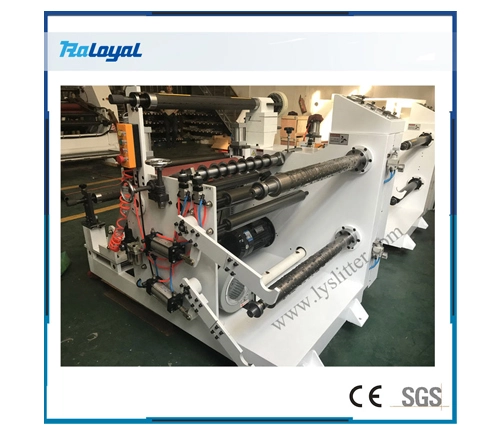

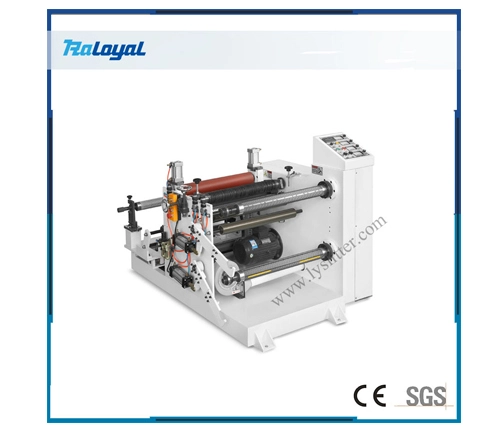

HC-650 Automatic Coil Slitter Rewinder Machine

Ultrasonic rectification---automatic detection and rectification---high accurate magnetic powder clutch---the unwinding and rewinding tension can be controlled---response sensitively---low noise.
Contact Now
Technical Support
  • Ultrasonic Label Slitting MachineUltrasonic Label Slitting Machine2018/09/04As a kind of label slitting machine, ultrasonic label slitting machine uses the principle that ultrasonic vibration and friction produce heat energy instantaneously, so that the mold or cutter contact...
  • Features of Paper RewinderFeatures of Paper Rewinder2018/09/01Paper rewinder is a special equipment for mica tape and film. The rewinding process mainly accomplishes three tasks, the first is to remove the edge of the base paper; the second is to cut the whole b...
  • Paper Rewinder, Safety and Energy SavingPaper Rewinder, Safety and Energy Saving2018/08/29If we want to make profits, we must work safely. The paper rewinder should avoid danger in use, this is a very important link, and the main requirements are as follows: Check the electrical switch of ...
  • Advantages of TTR Slitting MachineAdvantages of TTR Slitting Machine2018/08/26Slitting machine is a kind of mechanical equipment that cuts wide paper or thin film into narrow strips of materials. It is often used in papermaking machinery, and printing and packaging machinery. T...
Features Machine System Specifiction

Features of HC-650 Automatic Coil Slitter Rewinder Machine

USE:
This machine is widely used in the fields of electronics, packaging, leather, garment, plastic, printing and other industrial.

It is applicable to the electronic protective films, such as screen films of smartphones. And optical films, copper foils, aluminum foils, OPP, PE, PP, PVC, the type of paper, from the film, cloth, etc. slitting and processing is available on this type of machine as well.

This series of the machine is definitely able to achieve the functions of automatic inspection, automatic correcting and automatic counter in one process.

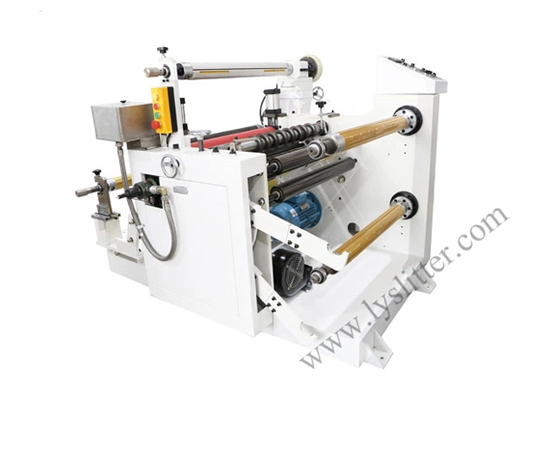

Characteristic:
This machine is tiny- volumed with an incredible low power required. As it is our most welcomed cheapest series of machines that have been hot selling, we, with our most sincere  heart, recommend it toward all of small factories and enterprises for slitting works. For example, a lot of industrial plastic and many kinds of plastic films are exceedingly needing this kind of machines, which are cost- effective and small- volumed. This series of machine are definately able to achieve the functions of automatic inspection, automatic  correcting and automatic counter in one process.

This series of machine is definitely able to achieve the functions of automatic inspection, automatic correcting and automatic counter in one process.

This series of machine is of high precision and high sensitivity as a slitting equipment. Receiving and discharging materials are used high-precision by two air shafts. The tension is under the control of magnetic powder break and magnetic powder clutch, being steady. Ultrasonic rectification is added to unwinding web guide so that we can achieve automatic detection, automatic correction, automatic metering, anti-fake materials, set the length of automatic parking, alarm, with fast, accurately cutting, simple operation and so on.

This machine is able to stick and slit within a single progress. Sticking or slitting can be done solely, enjoying characteristics such as fast slitting speed, ease of operation and maintenance every time you operate it! This series of the machine is definitely able to achieve the functions of automatic inspect automatic correcting and automatic counter in one process.

This series of machine are definately able to achieve the functions of automatic inspection, automatic  correcting and automatic counter in one process.

We’ve been always standing on where you are, to consider everything for you. So all of our team is very glad to provide you quality assuarance for a year , with a long time service since you buy any of our machines. This series of machine are definately able to achieve the functions of automatic inspection, automatic  correcting and automatic counter in one process.

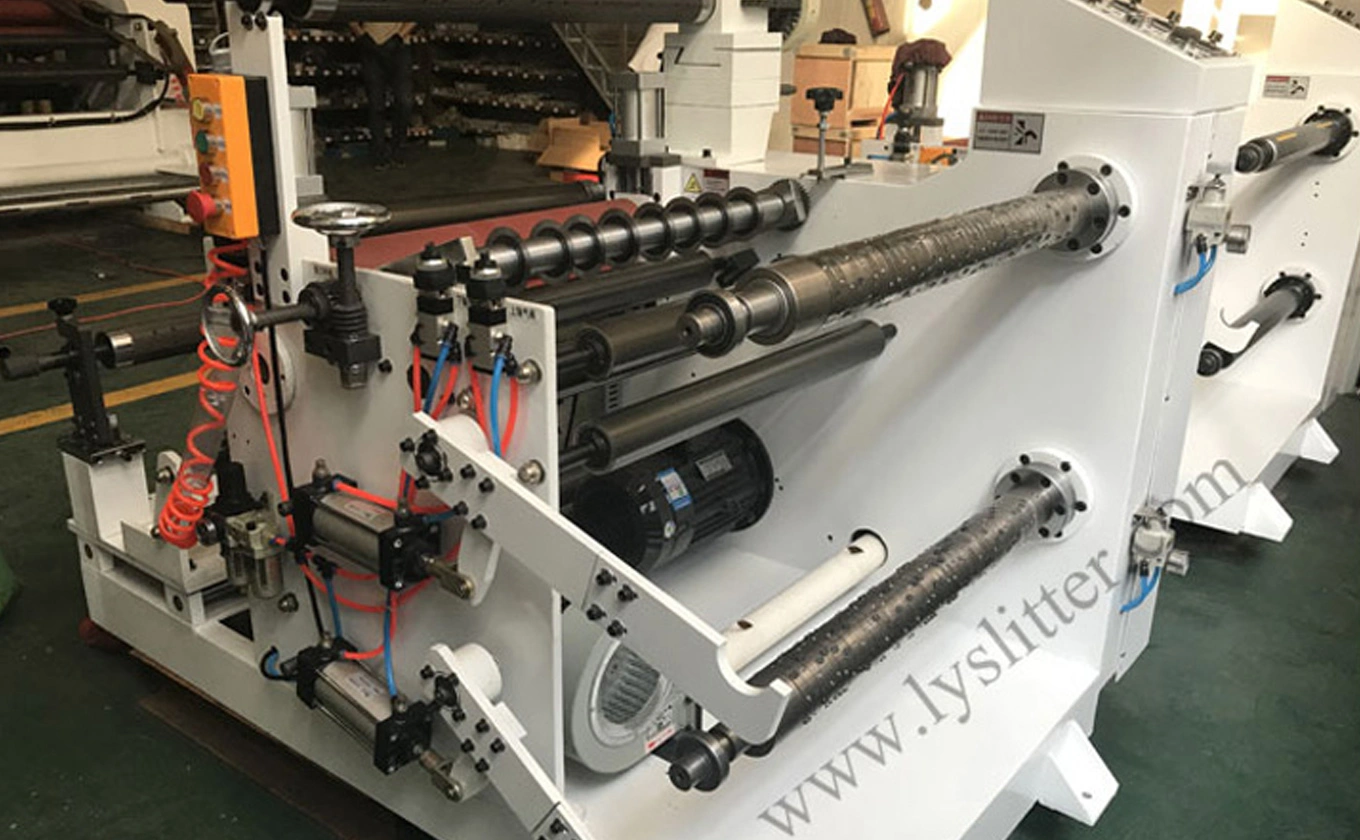

Unwind
Knife
Rewind
  • 1
    Air shaft
  • 2
    Photoelectric track and rectification system used in automatic inspection and automatic correcting system (high precision)
  • 3
    Magnetic powder brake be used to control unwinding tension
  • 4
    Polyurethane used in rubber covered roller make it more wearproof
  • 5
    Aluminum rod after Hardness oxide (protection materials and scratch-proof)
  • 6
    Cylinder provide the power to the movement of rubber covered roller
  • 7
    Variable frequency motor is used
  • 1
    Shear cutter system (sharp, flexible and slitting efficiently)
  • 1
    Air shaft
  • 2
    Magnetic powder clutch is adopted to control the tension

Specifiction HC-650 Automatic Coil Slitter Rewinder Machine

Optional:PLC, Touch screen, Rewind web clamping, Splicing table, Laser core position, Slip shaft, Automatic loading system, Hydraulic lift up

Technical parameter:

Model

HC-650

Max.  Unwinding width

650mm

Main motor power

2.2kw

Speed

100m/min

Precision

±0.03mm

Unwinding roller diameter

∮600mm

Rewinding roller diameter

∮450mm

Machine weight

1900kg

Machine overall dimension

3000*2400*1230mm
