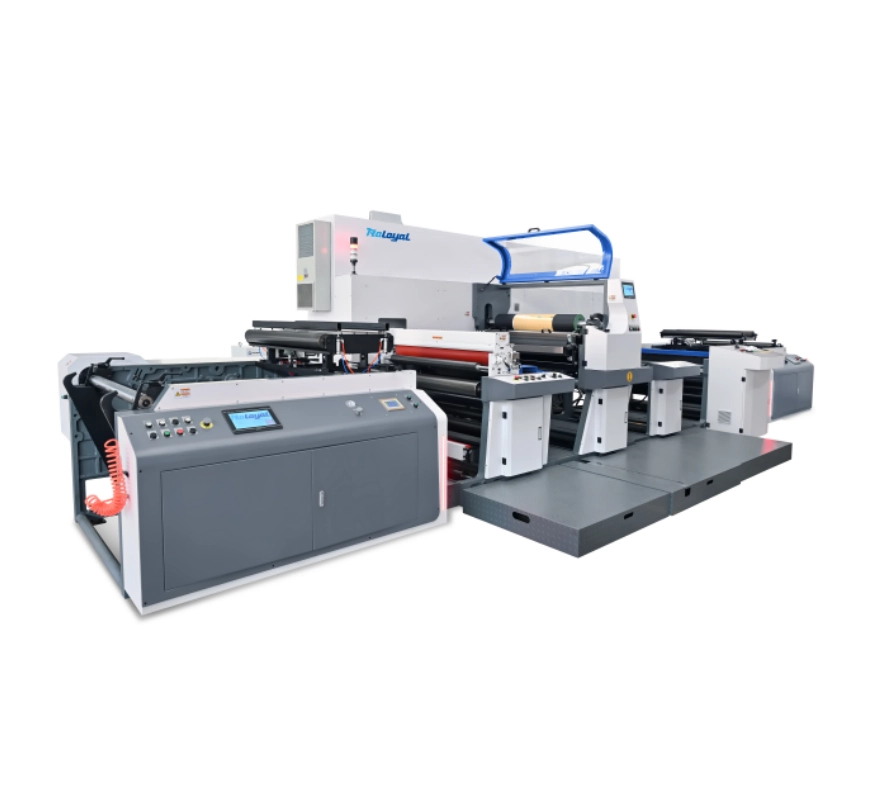

This machine is designed for beverage label flexible films, integrating primer coating, digital QR (Data Matrix) printing, inspection, and rewinding in one inline process.
It supports 1000mm web width and high-speed production up to 200 m/min, with precise registration on pre-printed films.
Equipped with mercury UV drying, dual servo drive, web guiding, and inspection system, it ensures fast curing, stable running, and reliable quality control.
An efficient and smart solution to meet high-speed digital printing and inspection demands.
Parameter | LY 1020-1 |
Max unwind/rewind diameter | 1524mm |
Max web width | 850mm |
Max printing width | 1000mm |
Power supply | 380V 3PH 50Hz |
Rating speed | 0-180m/min |
Register | ±0.12 mm |
Ink | Solvent ink&water based ink and UV ink |
Printing material | BOPP, 17-30 microns |
On the date of 13th June 2025 ,Dmitry ,an expert of printing industry ,from Digital Made company added my wechat ,
Sent me an inquiry :
They want to apply primer on the flexible packing film (beverage label),and then digital print QR code(Datamatrix code ) on the label film and then inspect before rewind .
The web width is 1000mm ,want to print speed more than 150m/min .
So the “Demand profile”now is clear.

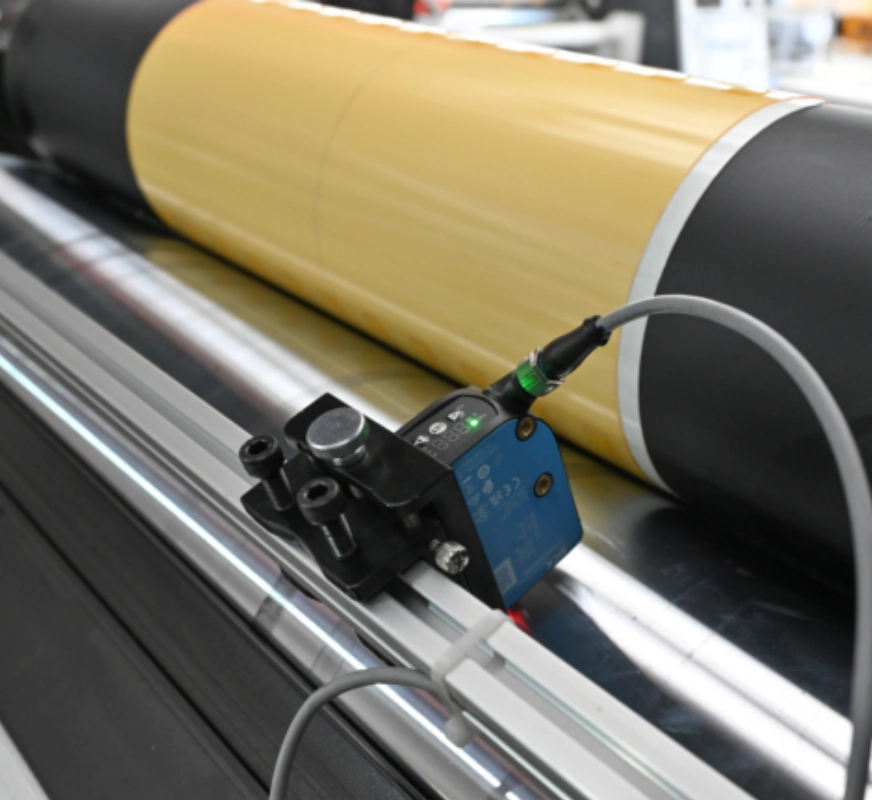

So for the 1000 model flexo printing machine ,should have very strong features and technology ,to apply primer on portion of the pre-print flexible packing film ,the photocell should track the pre-print film well ,then the digital print can print QR code on the correct place,Because the primer ink is more thick ,but the run speed customer asked more than 150m/min ,
so which means ,the primer should dry quick ,otherwise it will affect the speed .
So this decided that we can not use LED UV for drying ,we have to use the Mercury lamp UV.
But the mercury lamp temperature is higher ,which means it may affect the print effect on the film .
By now ,seems the solution is very complex ,can Raloyal make ?
The answer is Yes .

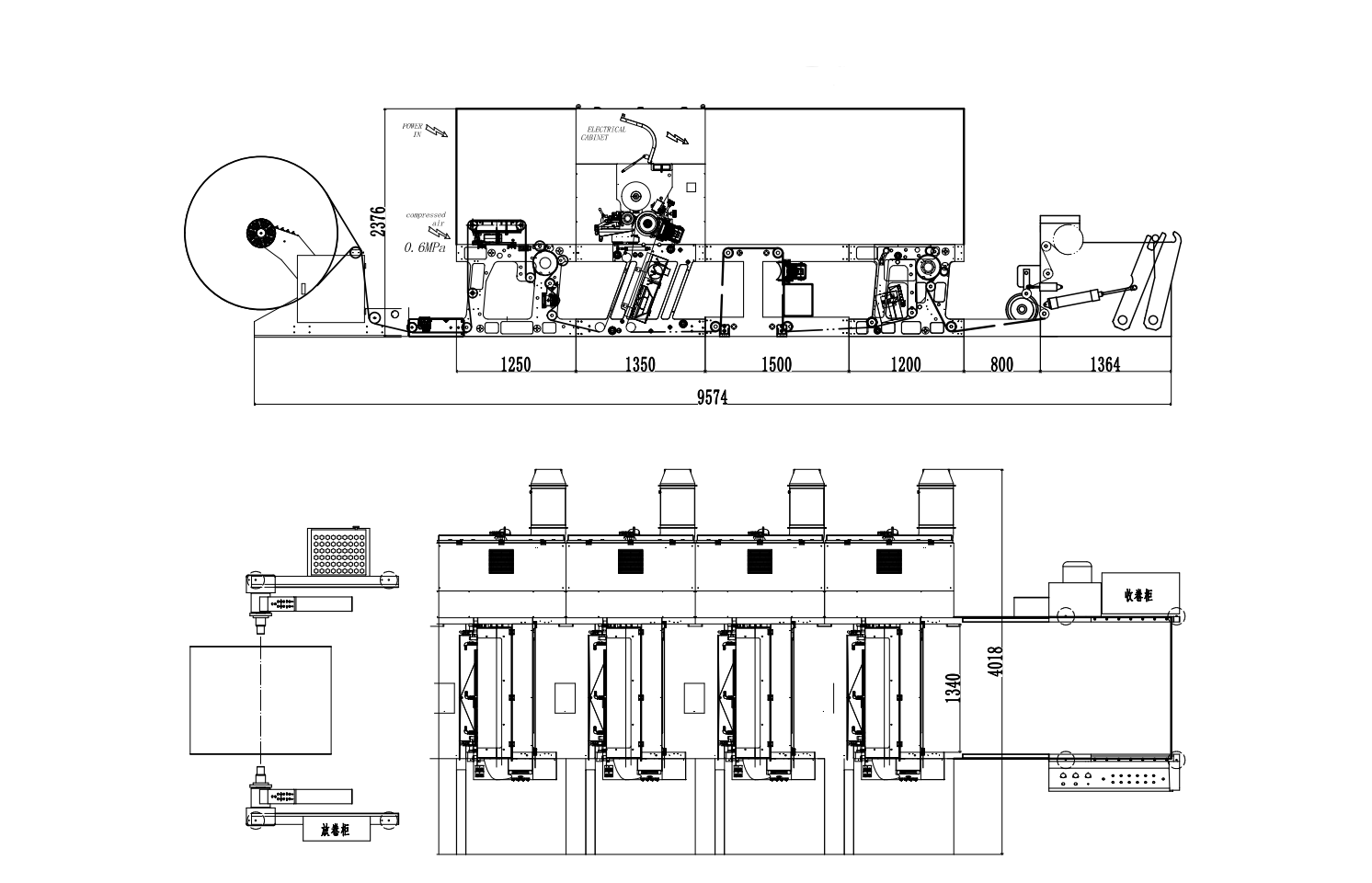

After 2 days confirmation with engineer ,we issue the drawing below :
Told cusomer our solution,which can meet their requirement well .
This make Dmitry have much confidence in Raloyal team .
And asked us to offer price ,
The price we offered is very reasonable ,which they have no any doubt for the price .
The machine seems concluded very smoothly ,right ?
The point is our technology solution can help customer to solve the hurtpoint and meet their demand well ,also the price is good .
Thanks Digital made trusting .
Machine we made included the excellent features:

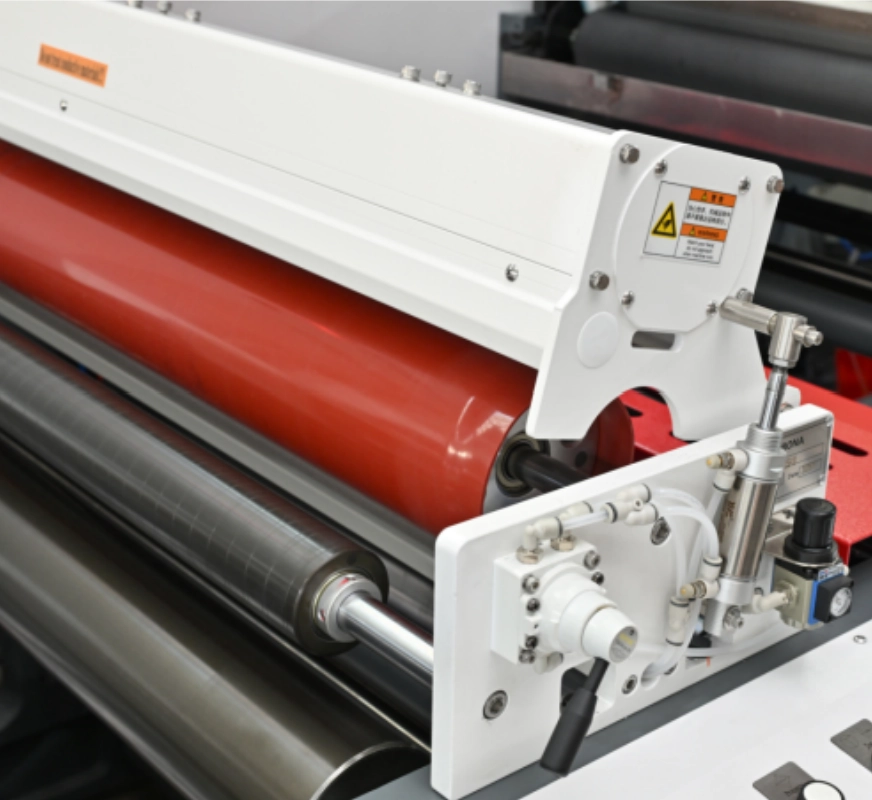

&Cylinder sleeve
&Max mechnical speed run meet 200m/min
&with 2 web guide
&Dual servo motor drive
&With web clean device
&With staic elimator device
&Withchiller and cooling device
&With inspection station
&With corona treatment
&Remote control
The machine leadtime is 100 work days....
so after long time waiting ..,the machine finally finished .

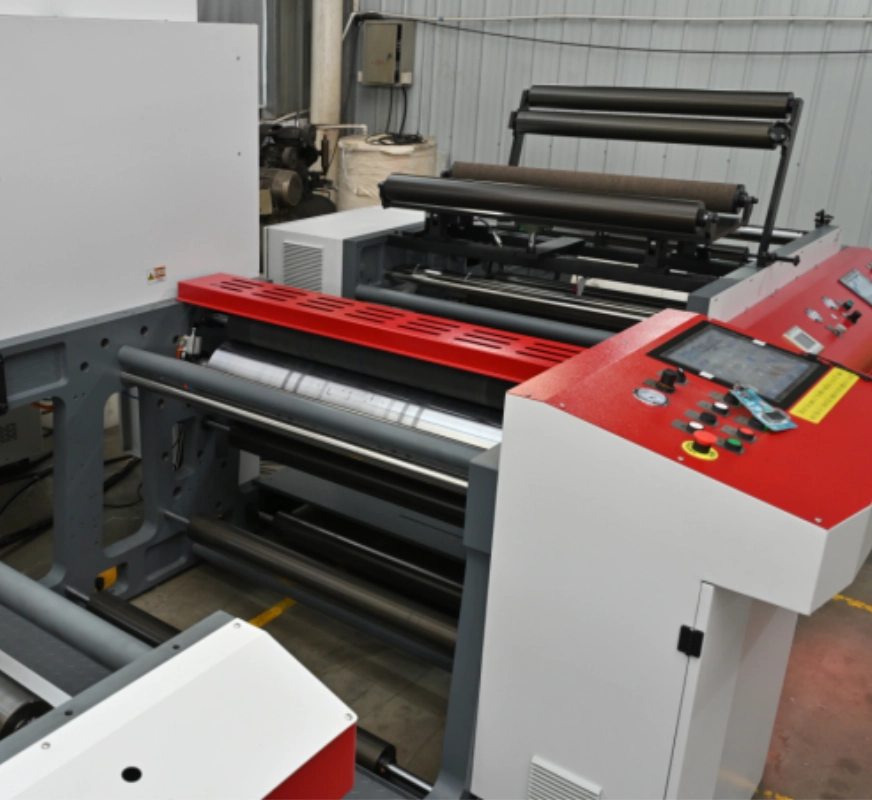

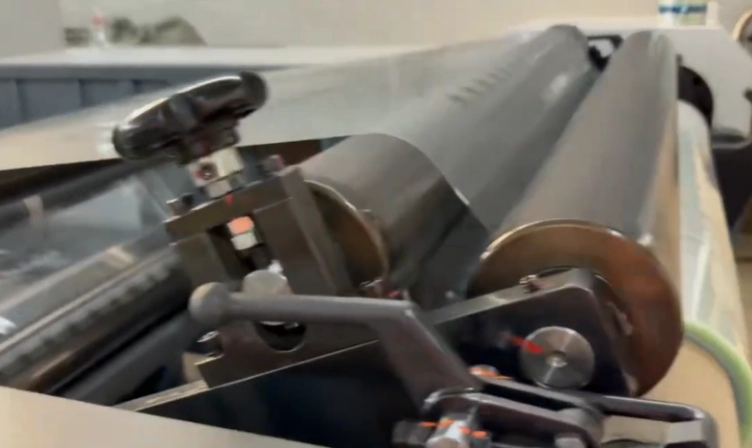

Photo here and testing video is below :
Thanks for the Digital made trust ,we want to do more to beyond customer expectation.
Raloyal mission is :To creat and provide value to customers .
So as a enterprise with the strong sense of responsibility .
Raloyla can give the commiment to cusotmer :we provide not only 1 year gurantee ,but also lifelong service support .
The support included :Machine setup &trainning and the parts supply.
For the machine setup ,Customer have 2 ways to choose after receive the machine .
1: Raloyal provide the machine operation video ,drawing, manual etc to customer ,
Most customer have learned the operation well via these information.
2 : Raloyal arrange the service techincan to customer factory for machine set up and trainning .
No matter which way customer choose ,we can also creat a group (advised :wechat ),which will put service technican and the sales in ,in addition , the company CEO will also be there . which means when the operator have any doubt or question for the operation ,they can leave message to the group ,our service technician will reply it as soon as they saw it .
By the way ,we also upload the machine operation video in webiste ,the link path is :
https://www.lyslitter.com/engineering/slitter-machine-operation-video/
For the parts supply ,Raloyal promisie we will provide customer the machine parts (Raloyal machine ) for lifelong time ,which means any time you need part ,we are here .
and provide the part at cost price .
Raloyal ,your loyal partner.
