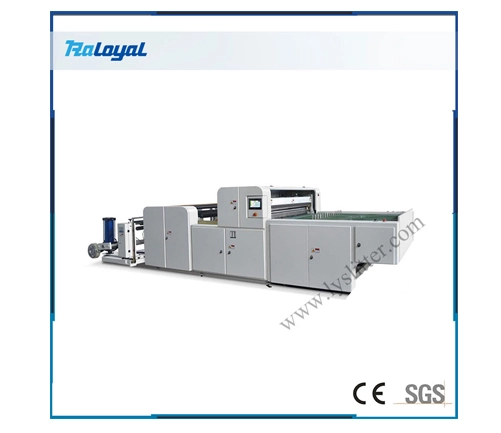

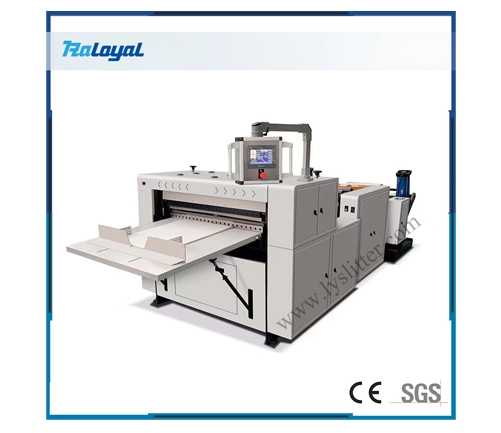

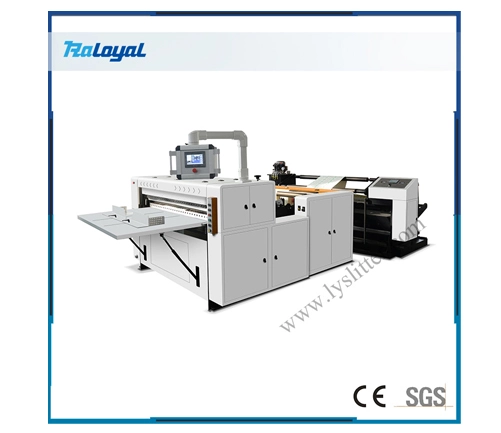

Sandwich Paper Sheeting Machine

This roll paper processing machine for industry is suitable for cutting all kinds of paper.

To get an instant quote Now
Feautures Specification Video

Feautures

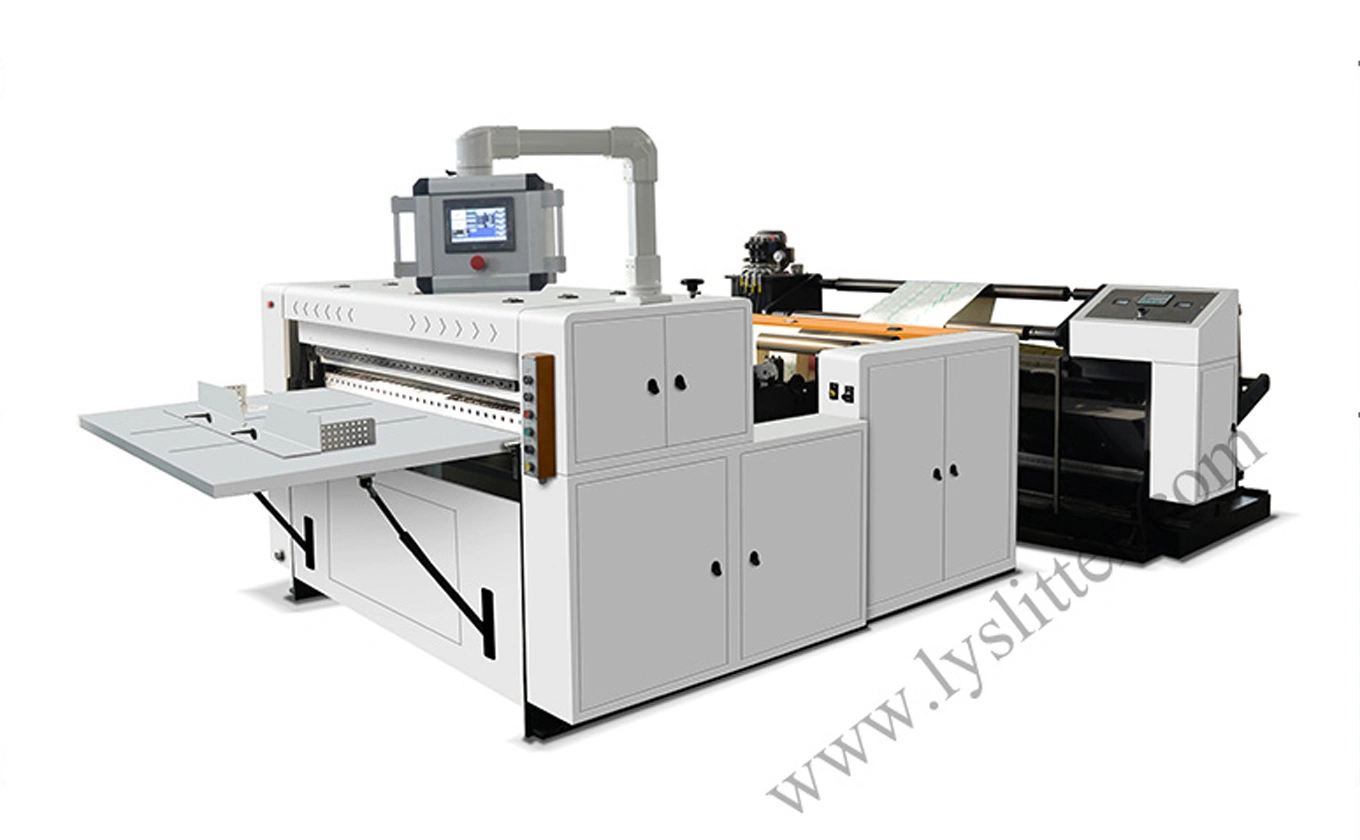

Application of Industrial Paper Roll Guillotine:
This plastic film wrapping machine is suitable for cutting all kinds of paper, self-adhesive, paper-aluminium composite, film, OPP, PVC, pearl film, film composite, color printing composite, non-woven fabric and other large-scale packaging materials. It is widely used for Hamburg paper, sandwich paper, food packaging paper cutting, etc.

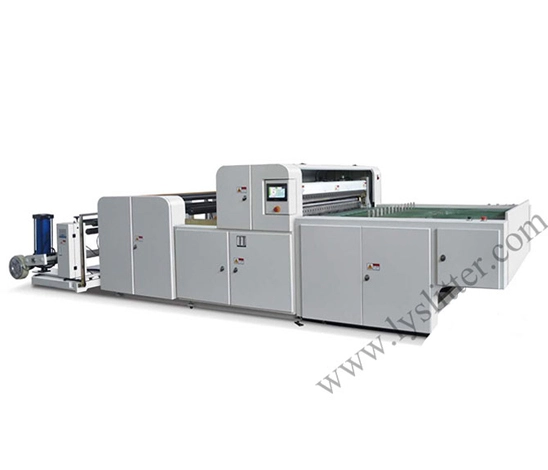

Characteristic of Industrial Paper Roll Guillotine:
  • PANASONIC PLC control, servo motor to control fixed length cutting;
  • The transmission system adopts centralized control such as pneumatic and photoelectric sensors;
  • This machine integrates light, electricity and gas, easy to operate, high cutting precision, mechanical stability, and low noise.(Pneumatic feeding is optional);
  • Motor frequency control, automatic counting, alarm stop, automatic adjustment of magnetic powder taper tension function.
  • It is currently the ideal plastic film wrapping machine for cutting large-scale coils with high quality in China.

Specification

Technical parameter

1

Machine model

LY-C1100A

2

Max unwinding diameter

φ1500mm

3

Reference weight of cutting paper

30~500g

4

Max cut width

1000mm

5

Cutting length

20-2000mm

6

Cutting speed

20-150times/min

7

Cutting precision

±0.2mm

8

Total power

6.5kw

9

Machine weight

2000kg

10

Machine dimension

4500×2000×1400mm

Video

The Running of Sandwich Paper Sheeting Machine

How to operate the machine
Rolling Knife

Cross Cutting Knife
How to fix the loose screws under the knife holder
