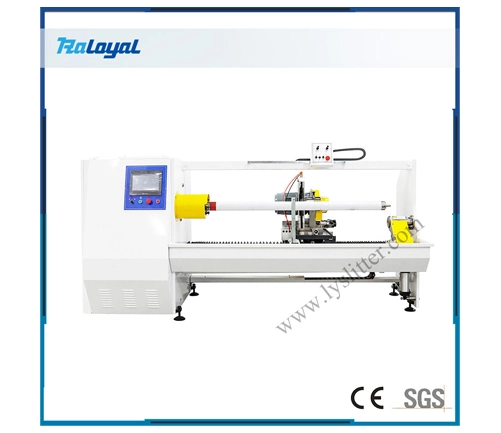

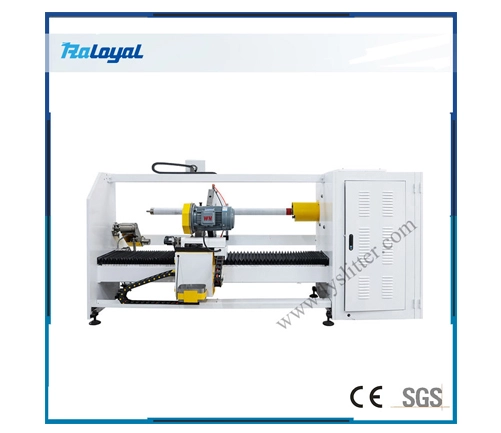

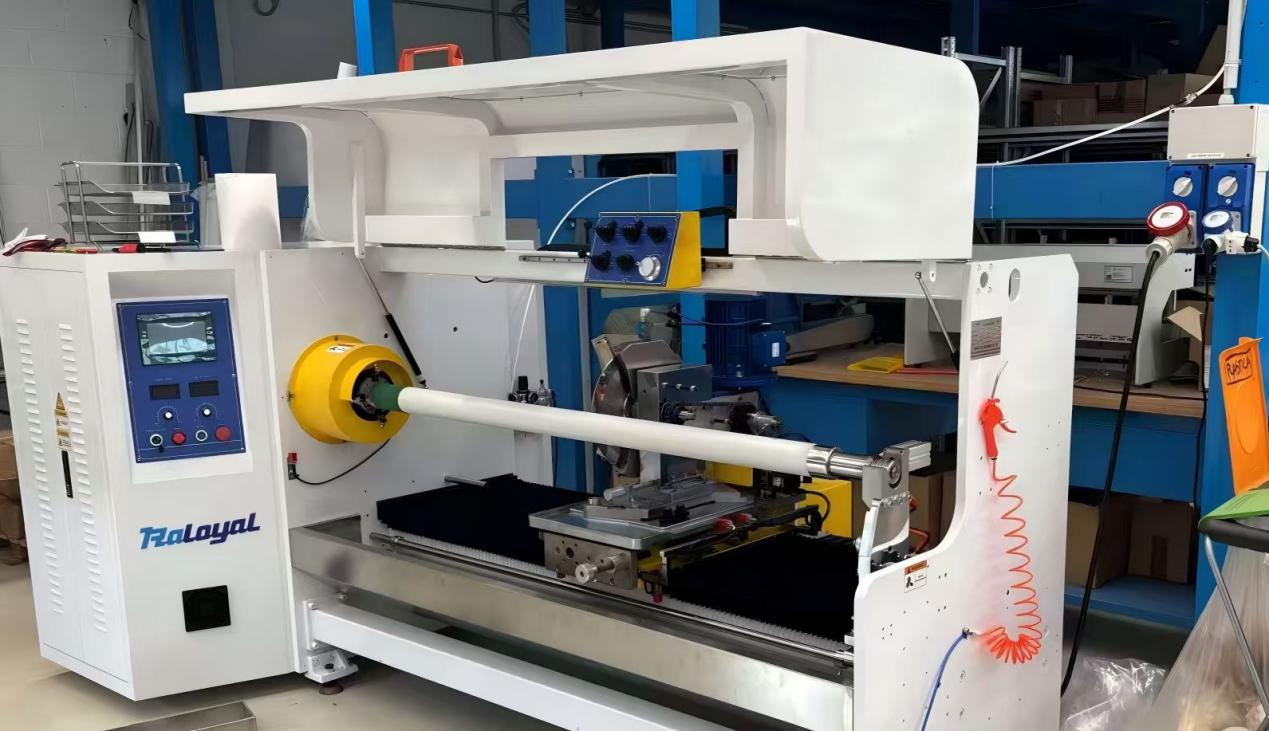

LY-701 Tape Log Slitter Machine

This Tape Log Roll Slitter Machine is suitable for cutting various materials such as PVC, OPP, PE, graphite roll, Crepe paper, etc. It is a double sided adhesive tape slitting machine.

To get an instant quote Now
Application Our Difference Frequently Asked Questions Clients feedback Video

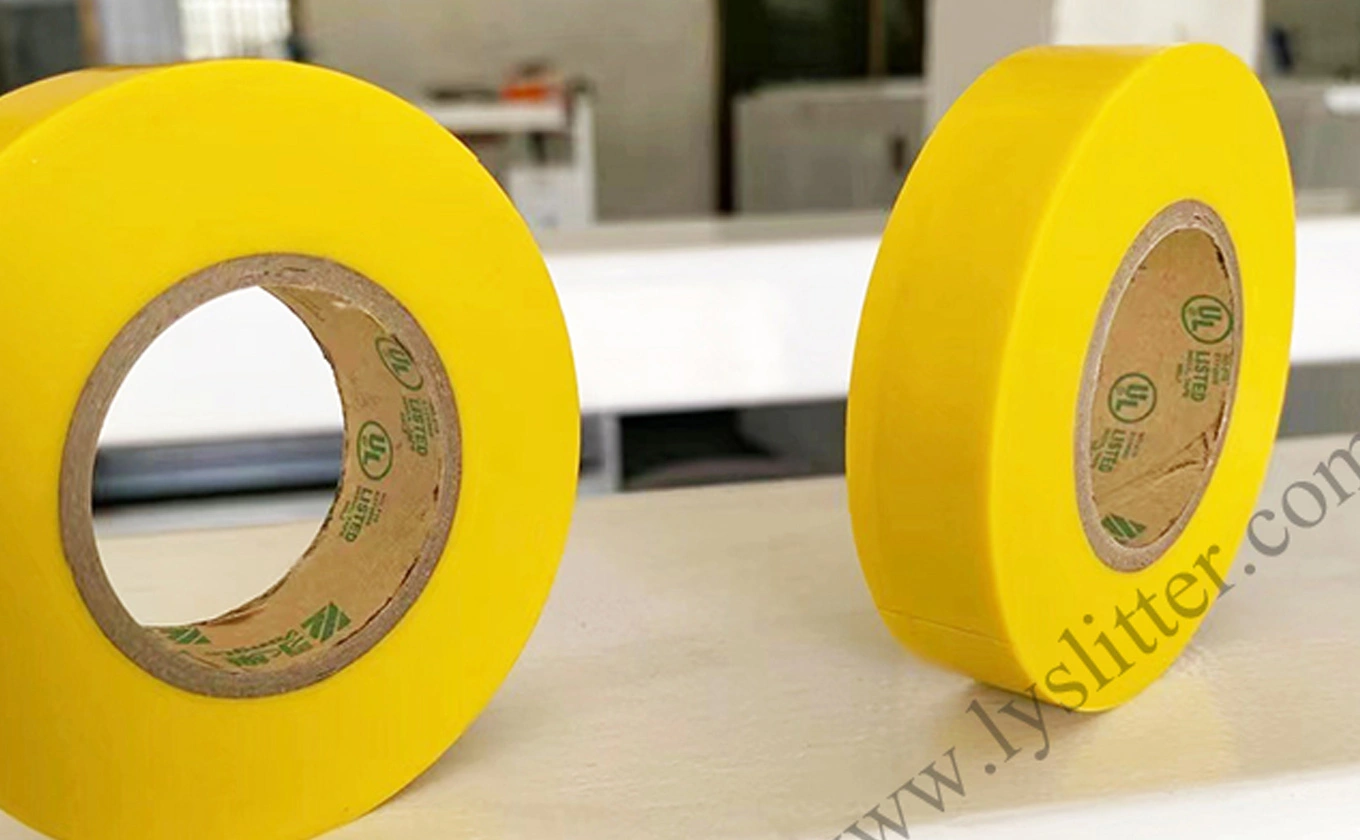

Application

This PE tape slitting machine is suitable for cutting various materials such as BOPP tape, electric insulating tape, masking tape, double or single side tape, cleaning paper tape, kraft paper tape, foam tape, medical tape, duck tape, PVC, OPP, PE, graphite roll, Crepe paper, Adhesive transfer tapes, vinyl logs, Car Vinyl Wrap film, window tint film, Masking tape, Stationery tapes, Packaging tapes,Double Sided tapes, Medicial tapes,Poli-Tape,RTape,Thermal Pad Tape, graphite roll with one side adhesive.

Application Industry of This Tape Log Cutting Machine Includes:

√ Automotive
√ Jointing
√ Bonding
√ Mounting
√ Cable
√ Insulation
√ Sealing
√ Masking
√ Protection
√Splicing

Our Difference

Min slitting width: 1 mm
Max slitting width: 2300 mm
Angular adjustment also controlled by servo motor
Short delivery time

Advantages of This Protection Tape Slitting Machine:

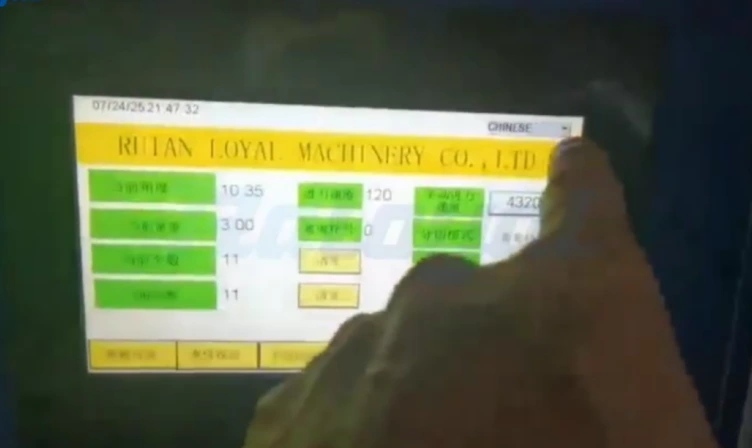

1. Touch screen control panel.
2. Control panel provides major functions: material and blade running speed, width counter, number of cuts counter (LED touch screen operation).
3. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
4. PLC programmable control.
5. Equipped with an automatic flip system, which greatly improves work efficiency.

Technical Parameter of This Making Tape Slitting Machine:

Machine model
LY-701

Cutting diameter

350mm

Cutting speed

35cuts/min

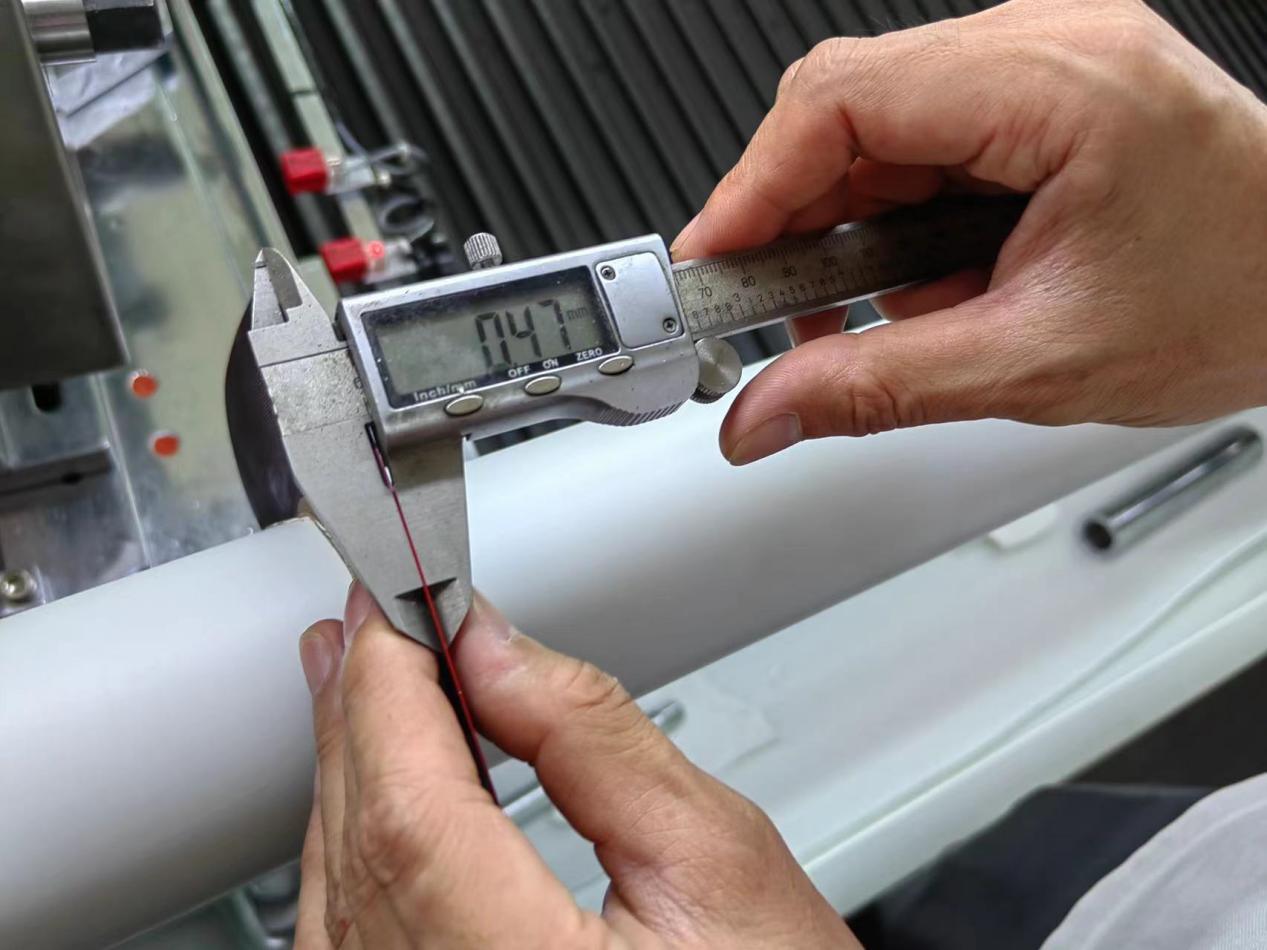

Cutting precision

±0.05mm

Max. length of cut

1300mm or 1600mm

Paper core I.D.

76mm

Cutting width

1-1300/1600mm

Machine dimension(L*W*H)

3100mm*1500mm*1700mm

Power source

380V 50HZ 3PHASE

Air source

5KG ( prepared by user)


Frequently Asked Questions

1. Except the 3 inches tube core, can I use the 1.5 inch etc. smaller tube core when using this double foam tape cutting machine?
Yes, it can.

2. What is the minimum width can slit?
Our log slitter min slitting width can reach 1mm.

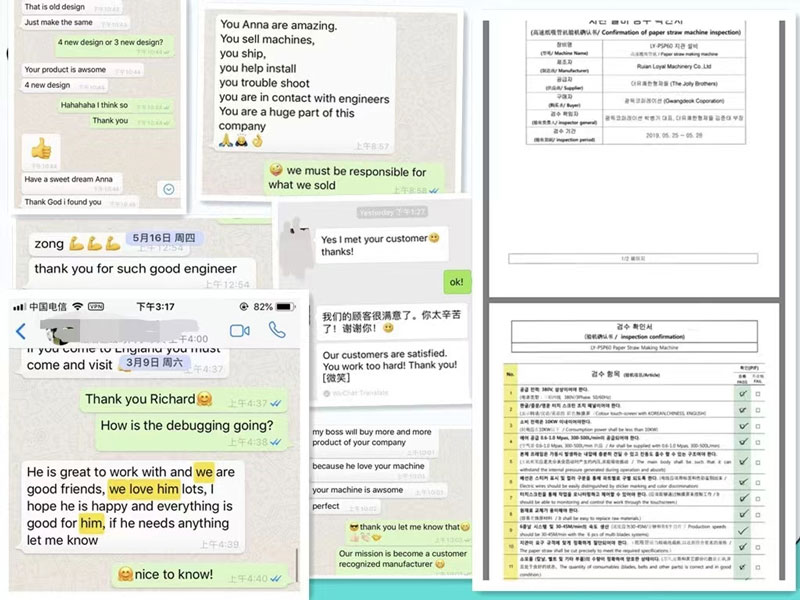

Clients feedback
