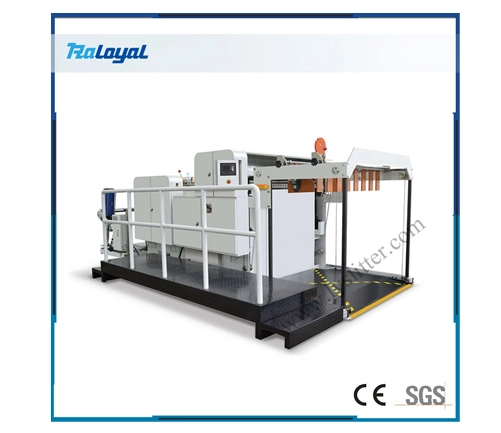

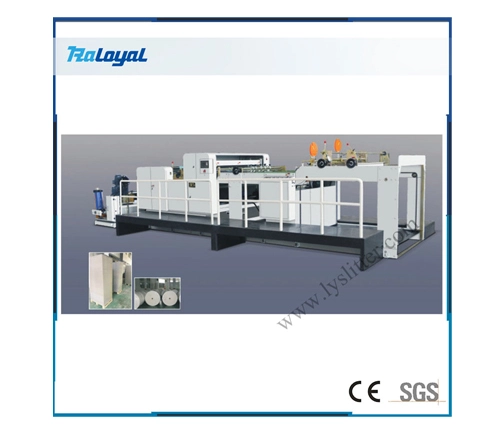

Paper Sheeting Machine

This automatic paper cutting machine is suitable for cutting all kinds of paper, which is an very ideal equipment for the jumbo roll paper cutting.

To get an instant quote Now
Features Specification Video

Features

Features of Paper Sheeting Machine

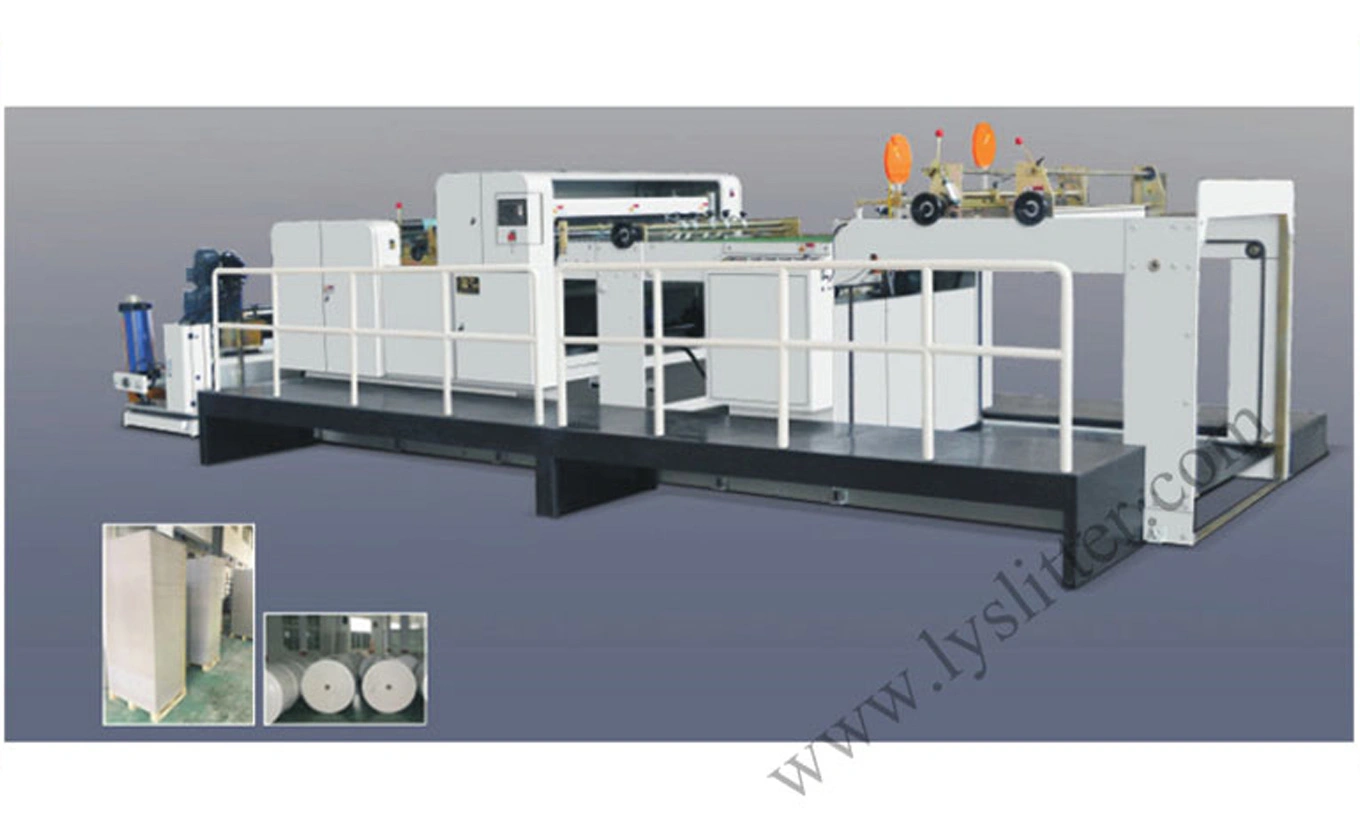

Application of PLC High Precision Paper Roll Cross Cutting Machine:
This paper roll wrapping machine is suitable for cutting all kinds of paper, laminated material ,film etc jumbo roll cutting and stacking, which is an very ideal 2 rolls roll to sheet cutting machine for the jumbo roll paper cutting in china.

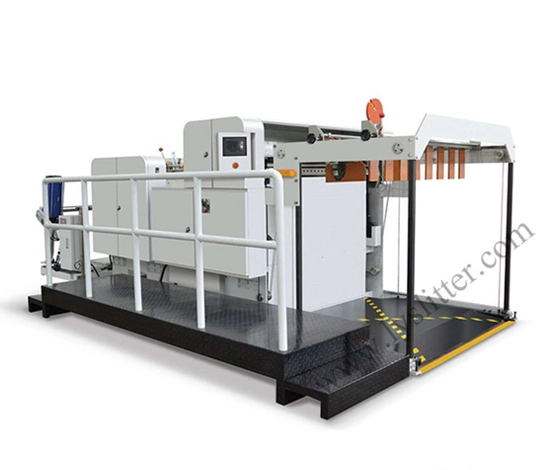

Characteristic of PLC High Precision Paper Roll Cross Cutting Machine:
  • PANASONIC PLC control, servo motor to control fixed length cutting.
  • The transmission system adopts centralized control such as pneumatic and photoelectric sensors.
  • This machine integrates light, electricity and gas, easy to operate, high cutting precision, mechanical stability, and low noise.
  • Motor frequency control, automatic counting, alarm stop, automatic adjustment of magnetic powder taper tension function.
  • This cigarettes tipper paper slitting machine is currently the ideal equipment for cutting large-scale coils with high quality in China.
  • 1.2M Paper Stacking function can be selected.

Specification

Technical parameter

1

Machine model

LY-C1100B

2

Max unwinding diameter

φ1400mm

3

Reference weight of cutting paper

70~500g

4

Max cut width

1100mm

5

Cutting length

400-1200mm

6

Cutting speed

10-150times/min

7

Cutting precision

±0.1mm

8

Total power

8.5kw

9

Machine weight

4800kg

10

Machine dimension

7000×1600×1850mm


Video

The Running of Paper Sheeting Machine


How to operate the machine
Rolling Knife

Cross Cutting Knife
How to fix the loose screws under the knife holder
