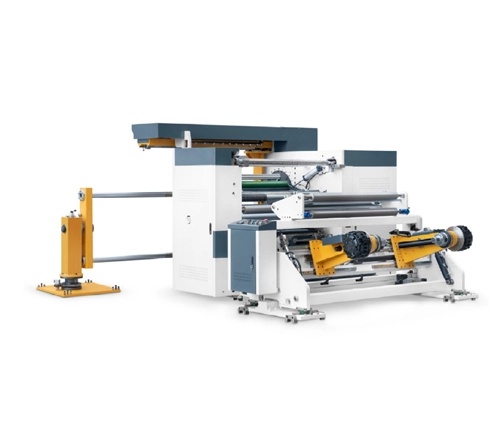

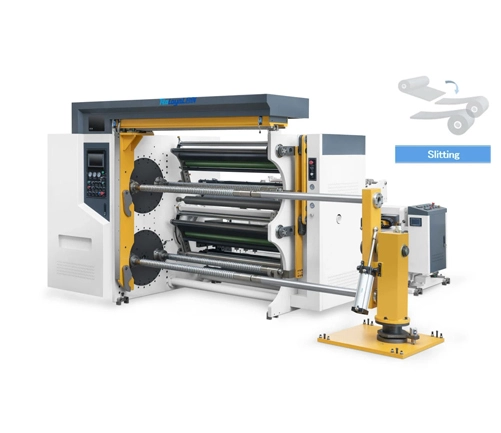

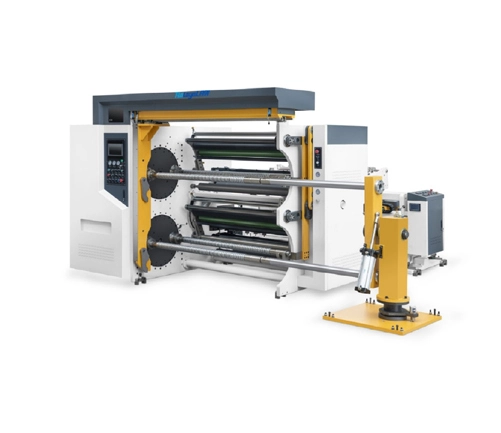

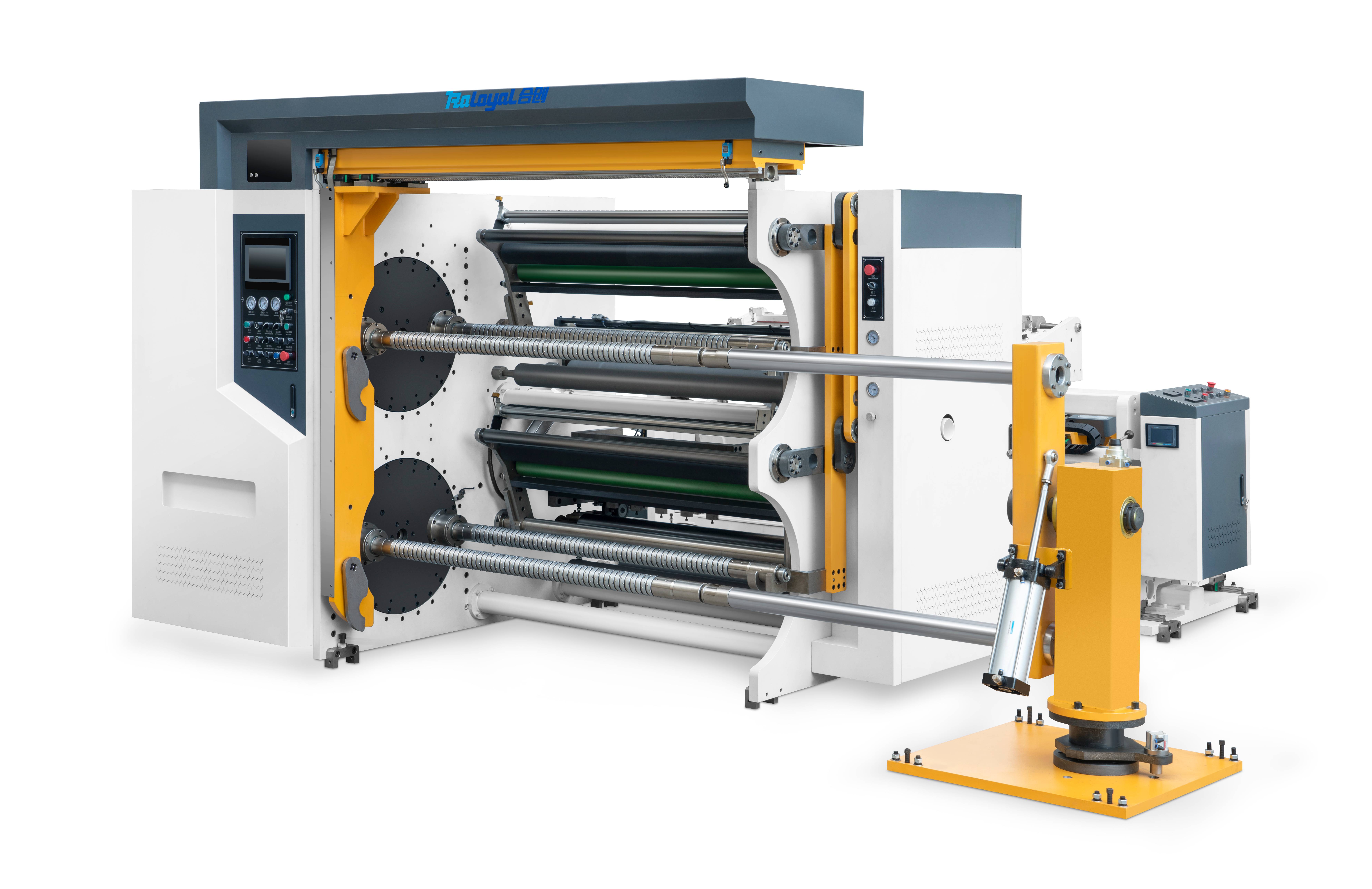

HCT4-1300/1600 Four-Axis Non Stop Turret Slitting Rewinding Machine

The HCT4 turret slitter is Raloyal another innovation, widely used for the soft flexible packing materials such as PE/PP/PET/BOPP/PVC, Composite membrane and other coiled cylindrical material,etc. And HCT4 still be suitable for Labels and Adhesive sticker.Such as art paper labels,tire labels,pe/pp labels, Edge band, etc.

To get an instant quote Now
Features Application Our Difference Video FAQ Case Share

Features

The HCT4 turret slitter is Raloyal another innovation, widely used for the soft flexible packing materials such as PE/PP/PET/BOPP/PVC,
Edge band, laminated film, edge bands and surface coating products for the furniture sectoretc.

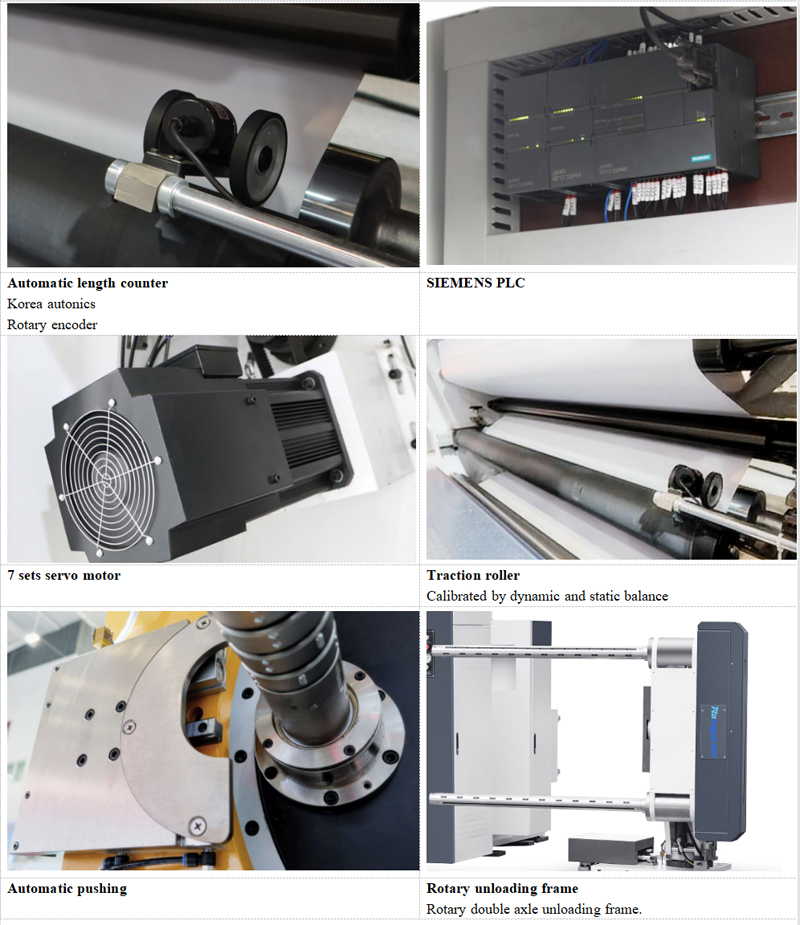

Characteristic
1.Equipped 7 servo motors, to enable the machine slitting, rotating and rewinding accuracy.

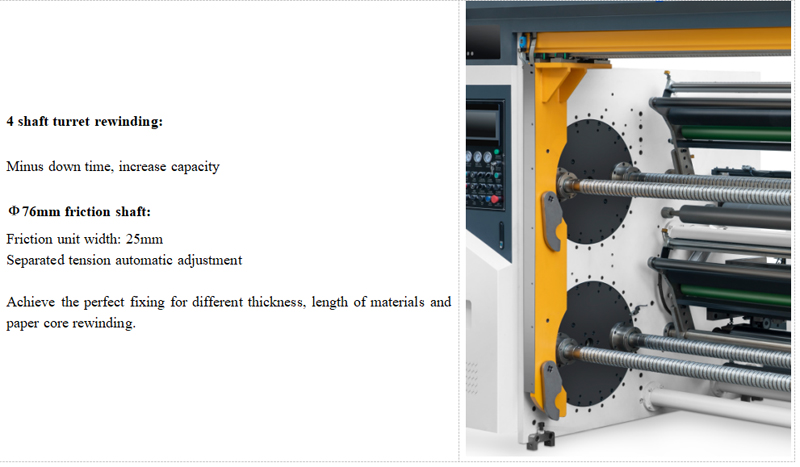

2.Automatic loading,automatic knife cutting,4 shaft turret non-stop,all the automation boost the efficiency and reduce the labor force.

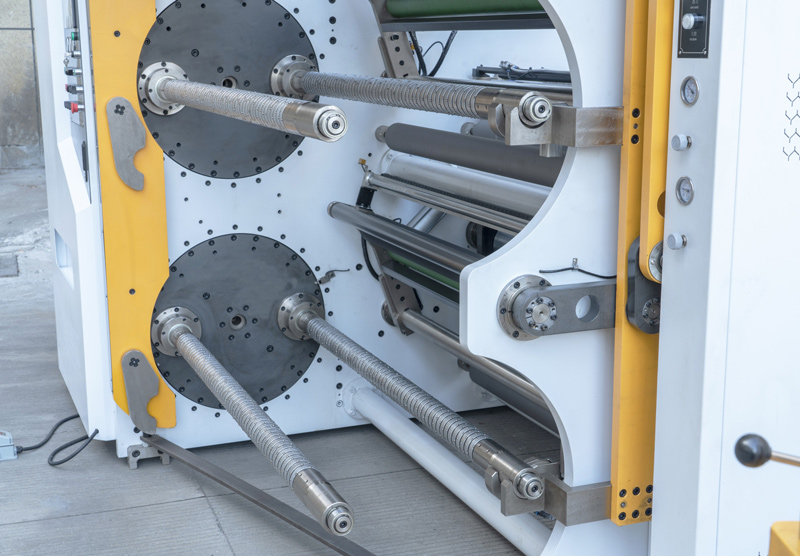

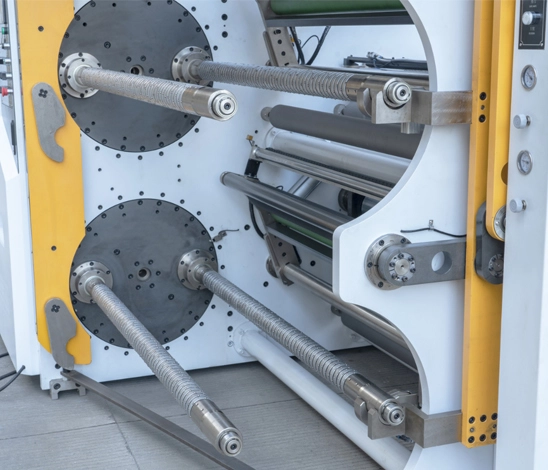

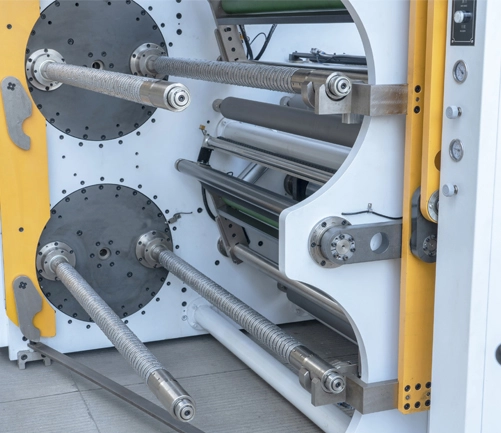

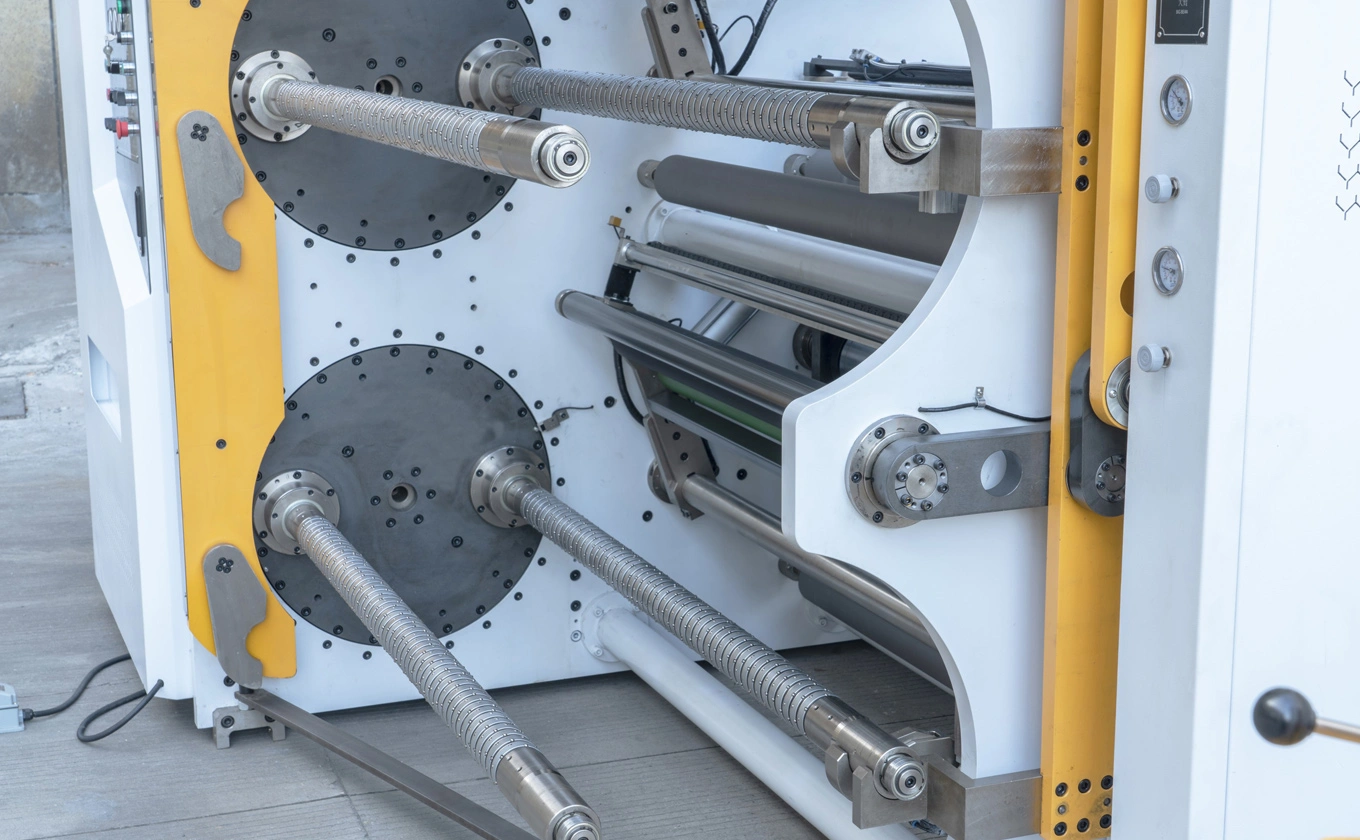

3.Dual-turret roll change non-stop for quick cycle time.
4.Shaftless unwind assure the loading safely and efficiently.
5.Laminating and peeling function can be selectable,Meet your production needs.
6.The machine operates at high speed, and the  mechanical speed can reach 500m/min.

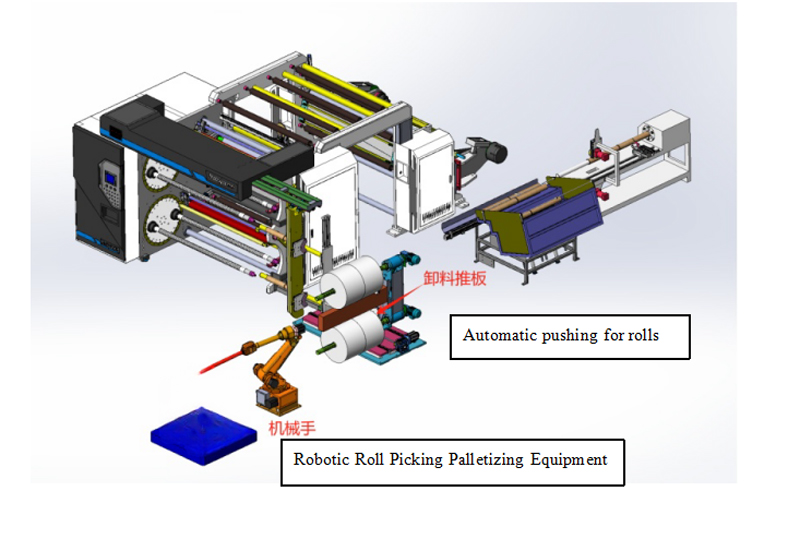

7.Automatic pushing for finished product.

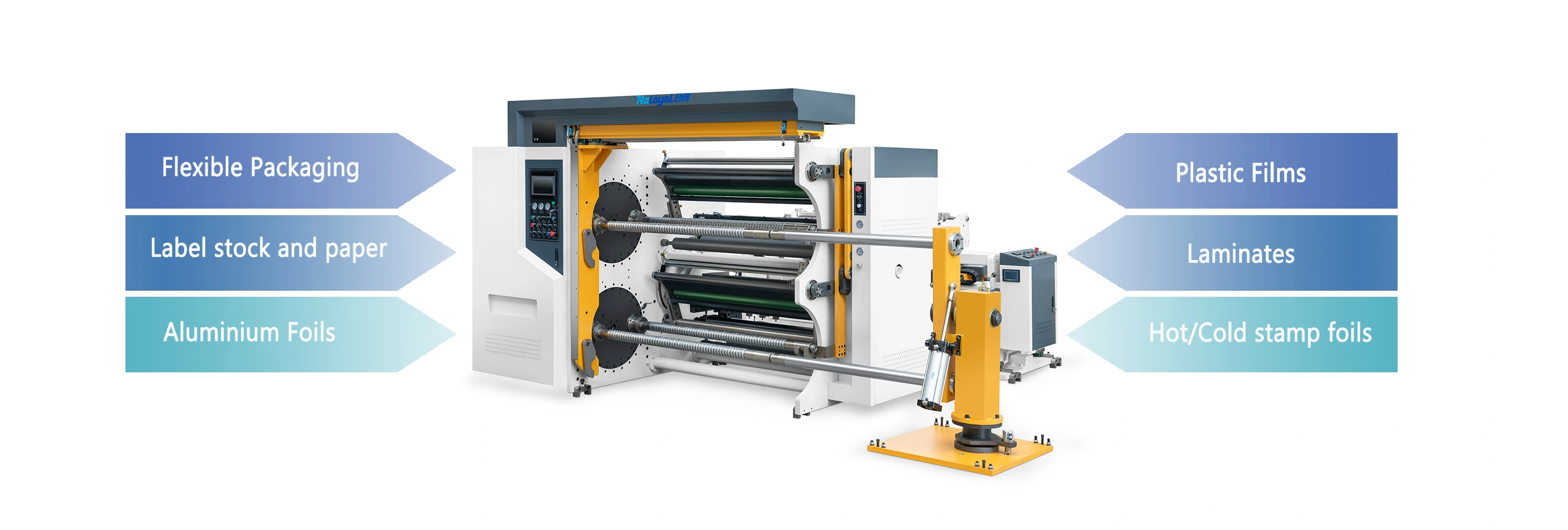

Application

The HCT4 turret slitter is Raloyal another innovation, widely used for the soft flexible packing materials such as PE/PP/PET/BOPP/PVC, Composite membrane and other coiled cylindrical material,etc.
And HCT4 still be suitable for Labels and Adhesive sticker.Such as art paper labels,tire labels,pe/pp labels,etc.
Release Liners (Paper/ Film)  and Label Stocks. Our range consists of Aluminum blister for pharmacy products, Aluminium pharma blisters, Release Paper Liners, Release Film Liners, Self Adhesive Paper Label Stocks (Cromo Art, Maplitho, Mirror Coat, Flourocent paper,Thermal Transfer, Aluminium foil paper( golden and silverl ), pvc film label stocks, vinyl film label stocks, polyester film label stocks, Self Adhesive Film Label Stocks (Polyster Film (metalized/Clear), PVC Film(Color/ Transparent), Vinyls(Colour/Transparent)  and Specialty Adhesive Tapes / Label stocks.

Our Difference

HCT4-1300/1600 Four-Axis Non Stop Turret Slitting Rewinding Machine serious is our latest innovation, owning the excellent performance:
1.Dual-turret roll change non-stop for quick cycle time.
2.Shaftless unwind assure the loading safely and efficiently
3.Laminating and peeling function can be selectable.

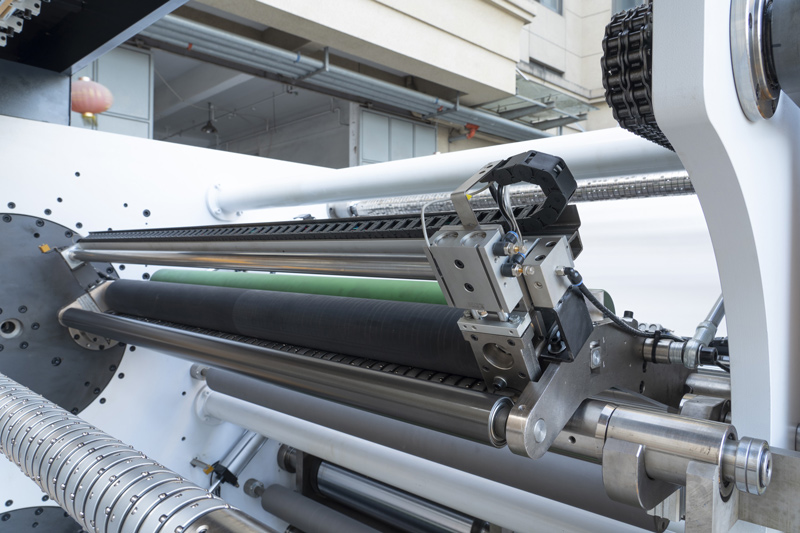

4.Automatic cutting, reduce set-up time.
5.Automatic push for labor-saving.
6.Pivot roll unloading device, rotates to safe unloading position.

Technical parameter:

NO.
Parameter items
Parameter index
Unit
1
Material thickness range
0.012-6.00
mm
2 Effective width of equipment
1300/1600
mm
3 Unwinding diameter
Φ1200 (MAX)
mm
4 Rewinding diameter
Φ600 (MAX)
mm
5 Mechanical speed
500
m/min
6 Unwinding the paper core
3(Φ76)
Inch(mm)
7 Winding the paper core
3(Φ76)
Inch(mm)
8 Cutting width
The narrowest 15
mm
9 Strip width
The narrowest 5
mm
10 Total power
About 30
Kw
11 Supply voltage
AC 380±5%
V
12 Equipment size
L4400*W4200*H2100
mm
13 Unloading rack area
L1550*W500
mm
14 Equipment weight
≈6300
Kg




Video

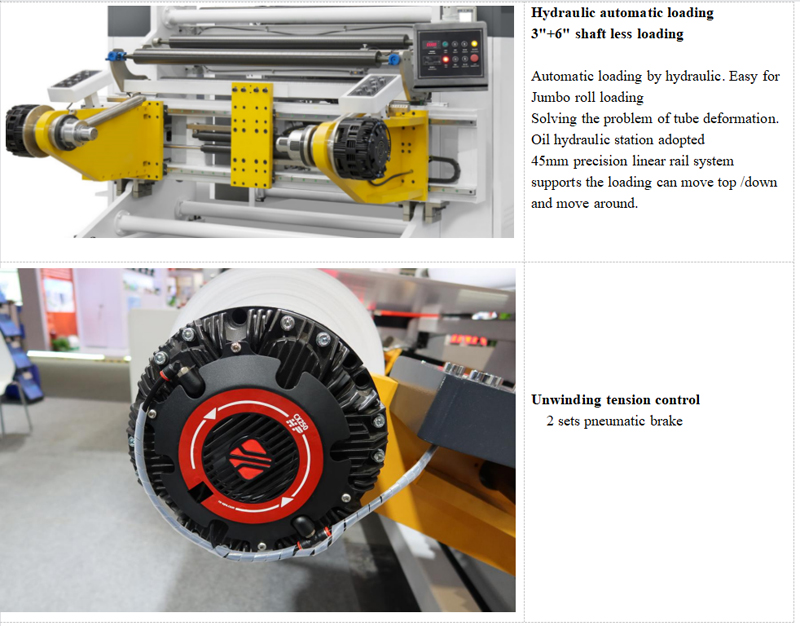

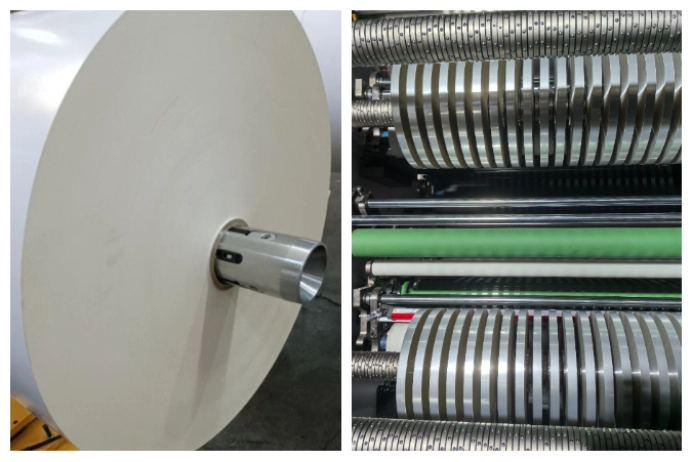

Shaftless Loading

Turret Function Show

FAQ



1: Auto push included?


Yes.



2: Is this machine with automatic unload?



Yes. Exactly.



3.What kind of material can this machine slitting?


The HCT4 turret slitter could slitting PE/PP/PET/BOPP/PVC, Composite membrane and other coiled cylindrical material,etc.
And HCT4 still be suitable for Labels and Adhesive sticker.Such as art paper labels,tire labels,pe/pp labels,etc.


4. Can this slitter equip automatic die cutting online ?



Yes,HCT4-1300/1600 could equip die cutting online.




5 :Can this machine convert the sticky mateiral ,for isntance : foam tape?


Yes,Exactly.This machine has been specially treated.



6: How about the machine installation and operation when. Machine delivery to our factory?

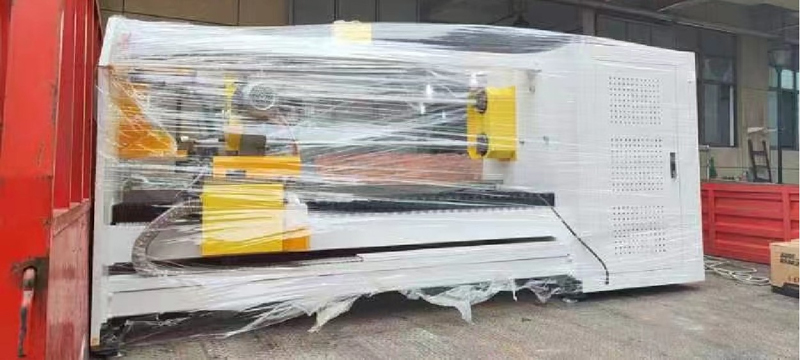

Machine as usual is integrated and we do not dismantle before delivery.

So just connect the power cable and air pipe is ok.

For the operation, we take instruction video for all customers before delivery to guide you how to operate, and provide the instruction file.

Also, we provide service: our engineer and technician open live training until you learned it and run it well.



7: How about the guarantee?


Ø 12 months guarantee, life-long time technic maintenance and support. 24 hours feedback when receive the client writing militance proposal.

Ø Any part damage caused by non-human factors within the warranty period can be replaced for free, excluding machine consumable parts. Maintenance of part damage caused by violation operation or mis-operation of operators will be charged with costs of parts.

Ø The price of spare parts exceeding the warranty period shall be the lowest ex-factory price of the seller.

Ø For extra accessories beyond the standard configuration of contractual machine, the price shall be the lowest ex-factory price of the seller.

Any time you have question about slitter, we are always here to provide service.

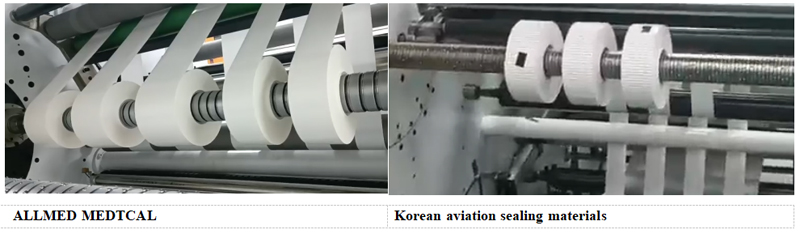

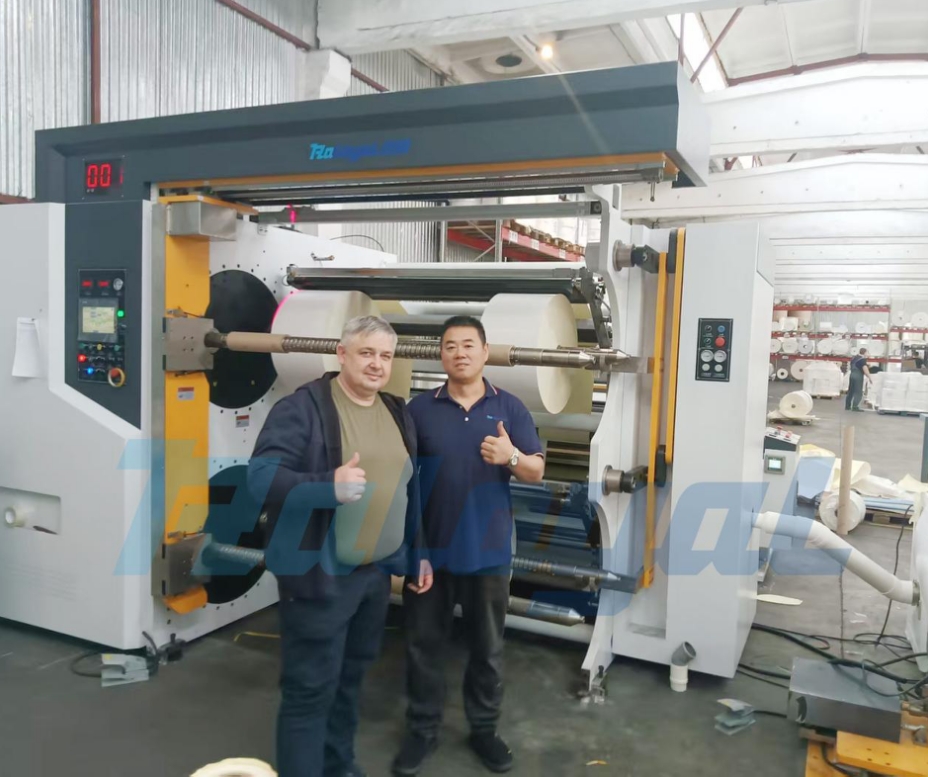

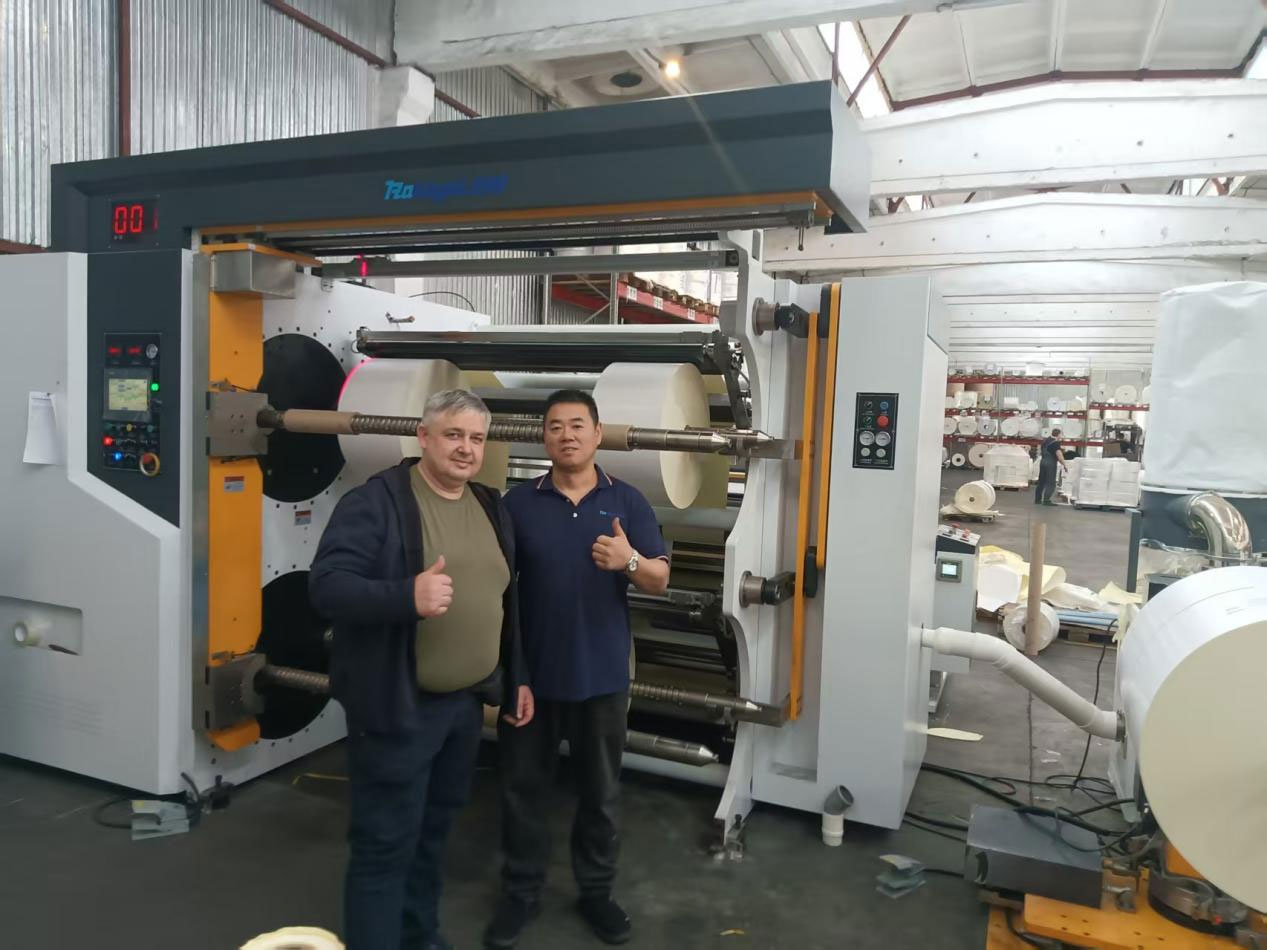

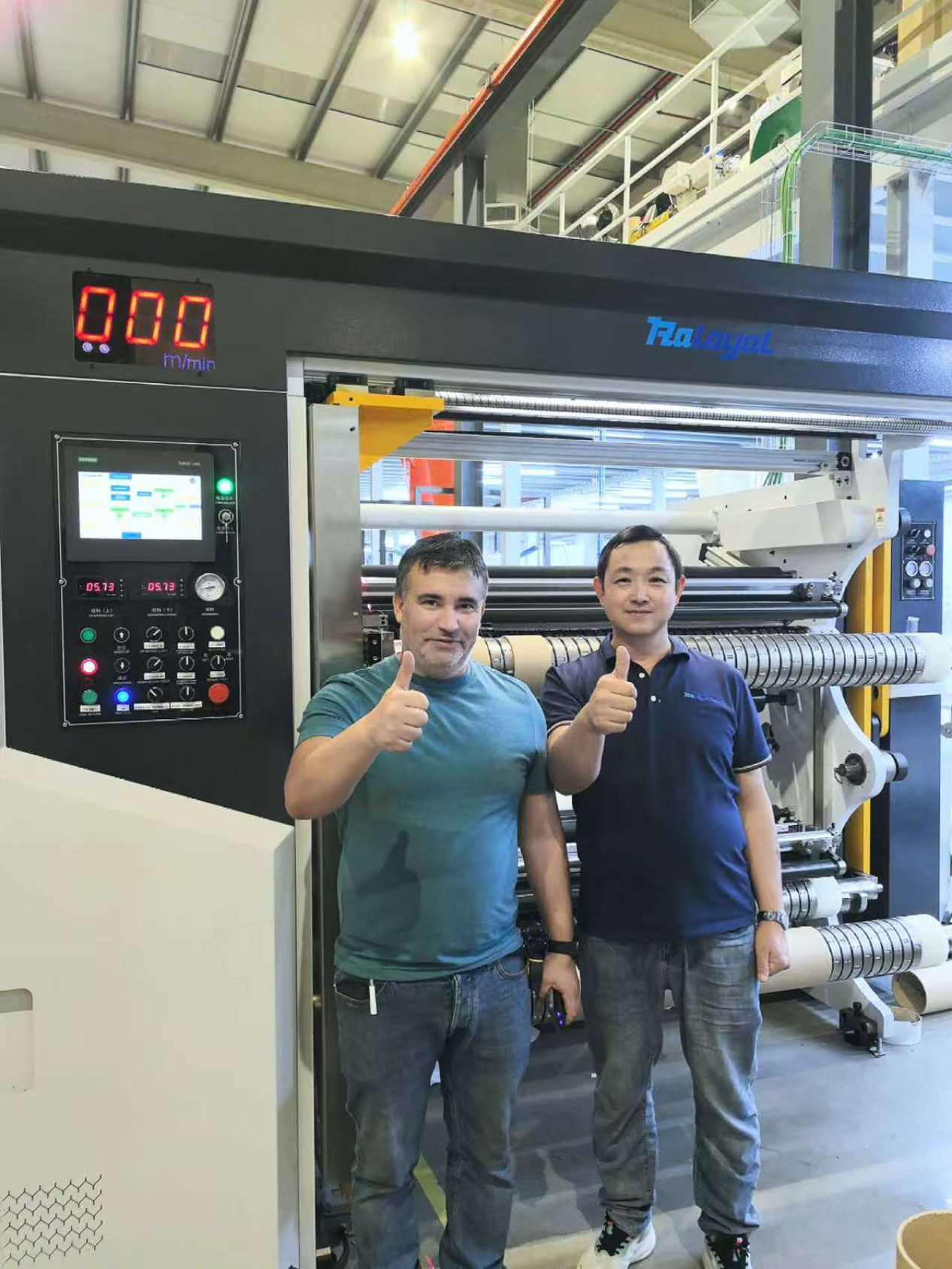

Case Share
