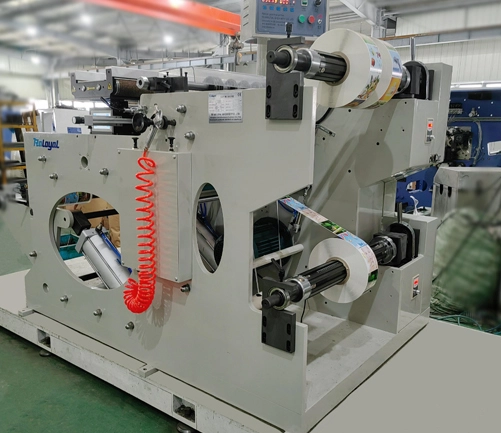

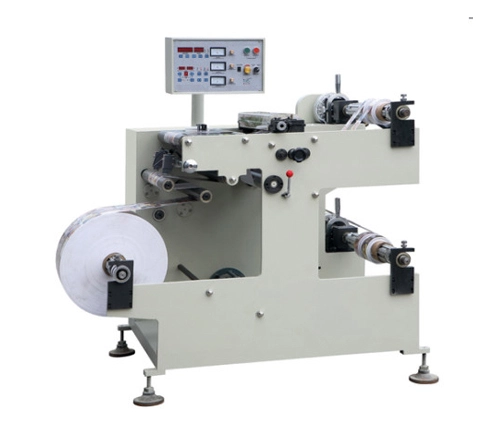

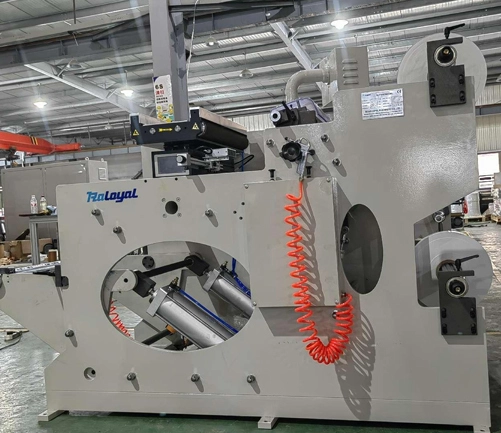

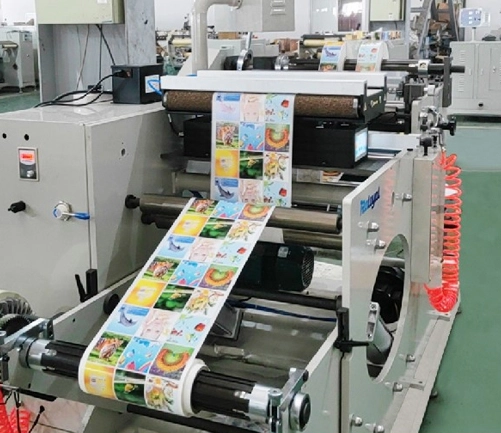

HC-550 Slitting Rewinding Machine

This type machine is the most ideal machine for small width paper,labels,film slitting and rewinding.

Tel:+86 18367750188

Email:ly@lyslitter.com

To get an instant quote Now

Feature Application Specification Video

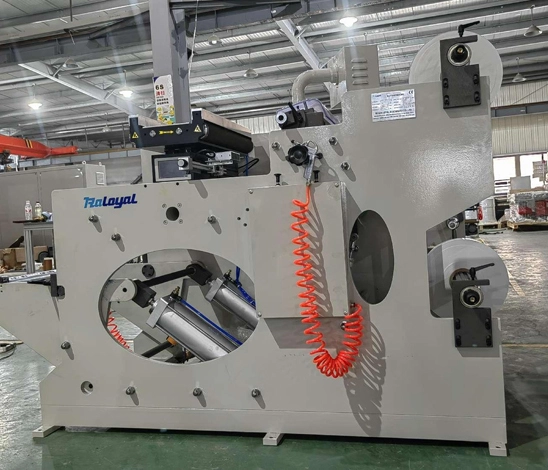

Feature

1.Automatic metering and counting function.

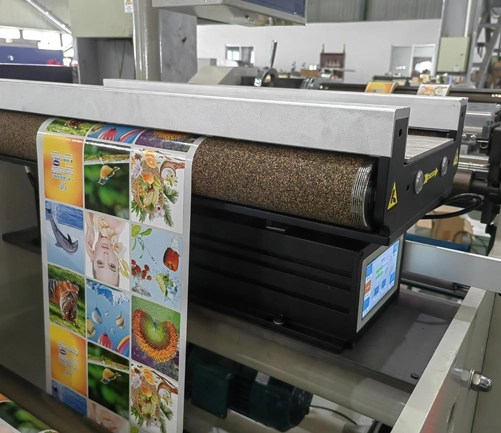

2.Web guide uses photocell correction, 2pcs.

3.Schneider Inverter adopted.

4.Synchronous belt transmission, can assure the noise much smaller and keep machine running in high speed.

5.Unwinding tension is controlled by magnetic powder brake.

6.Rewinding tension is controlled by magnetic powder clutch, 2pcs.

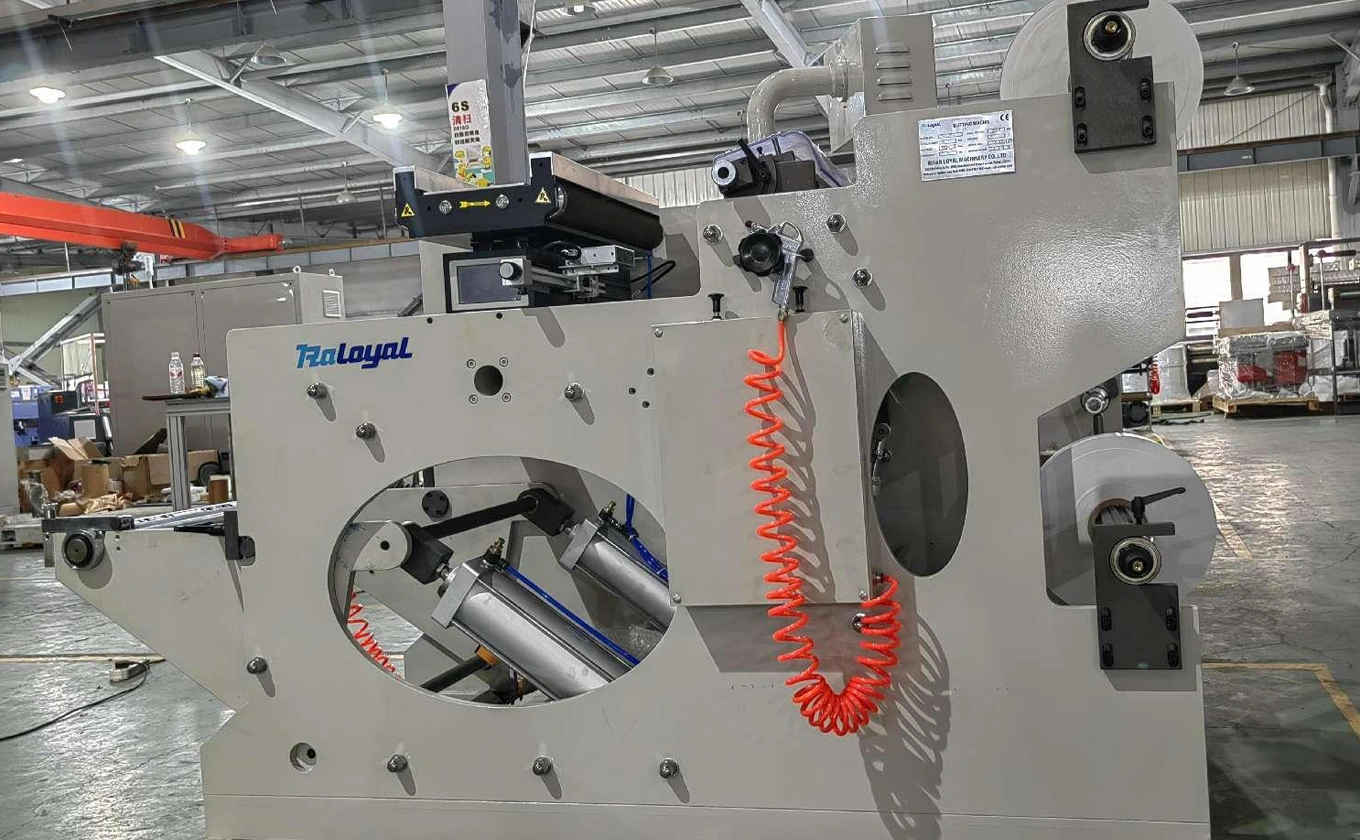

Application

This type machine is the most ideal machine for small width paper,labels,film slitting and rewinding.

Specification

1	Machine model	HC-550
2	Unwinding width	550mm
3	Slitting speed	120m/min
4	Unwinding diameter	Φ600mm
5	Rewinding diameter	Φ450mm
6	Main power	2.2kw
7	Machine weight	900kgs
8	Power Supply	380v/3phases/50hz

Video
