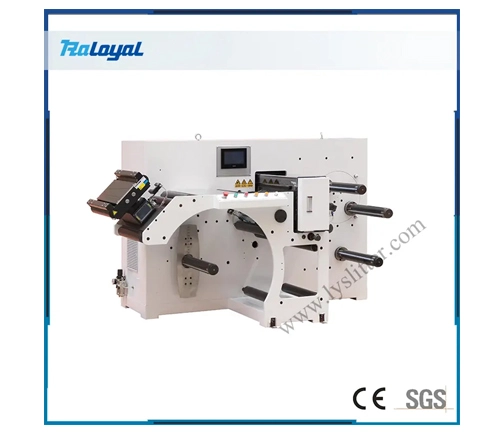

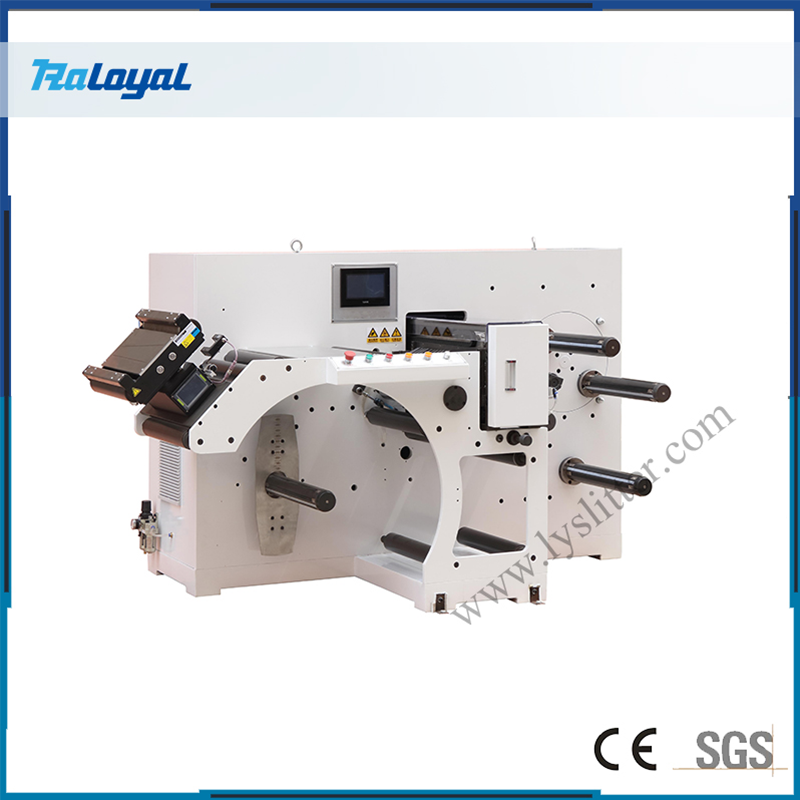

HC-H350 High Speed Slitting and Rewinding Machine

This type of paper rewinders is our latest innovation for sticker label roll converting in high speed.
TO_GET_IQN
Features Technical parameter Video

Features

Use of HC-H350 High Speed Slitting and Rewinding Machine
This automatic rewinding machine is our latest innovation for sticker label roll converting in high speed.


Characteristic of HC-H350 High Speed Slitting and Rewinding Machine
Developed by Raloyal ,this high speed slitting machine is for top high level market with full servo driven system taper tension control system, top brand web guiding, turret rewind, support variable size shafts exchange, meter and number counting, less material automatic down speed or stop etc.

Technical parameter

1 Machine model HC-H350
2 Unwinding width 350mm
3 Power supply 3PH+N+PE
4 Machine speed 350m/min
5 Slitting width ≧18mm
6 Unwinding roller diameter Φ700mm
7 Rewinding roller diameter Φ450mm
8 Machine weight 1500kg
9 Installation dimension 1800*1400*1400mm

Video
