Slitting blank thermal paper,bond paper, Cash register paper, Fax Paper,POS paper,ATM paper, and other small ribbon roll.
Equipped with Panasonic PLC and Weinview touch screen, all the parameter are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameters for machine running automatically.
Equipped with Auto Tension Control System for unwinding tension.
With meter counter. Got to the setup data, the machine stops and alarms.
It adopts Synchronic Belt to avoid the over lap problem.
It adopts frequency inverter for main inverter motor driving, the speed can be displayed on the operation panel. Frequency inverter motor: 2.2kw.

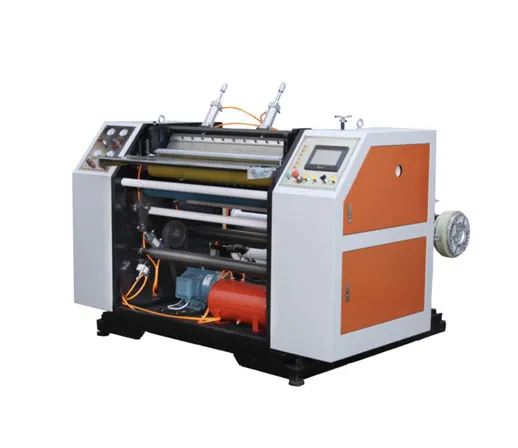

Model model | HC-T900A |
Max. parent web width | 900mm |
Max. parent web dia. | 1000mm |
Max. rewinding dia. | 150mm |
Machine speed | 150m/min |

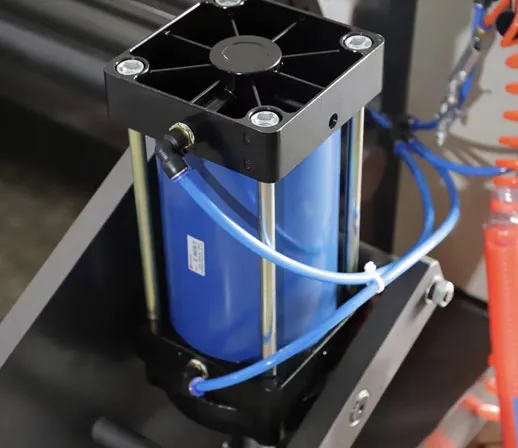

Unwinding shaft | 3” pneumatic air expanding shaft |
Weight | 1000kg |
