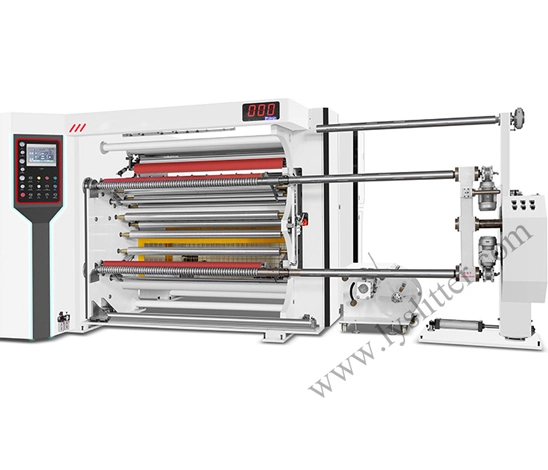

HCH4-1300/1700 high speed slitting machine

Name: HCH4-1300/1700 high speed slitting machine
Brand: RUIAN LOYAL MACHINERY CO., LTD.

The machine applies to slit the thicker flexible film and computer security labels, electronic computers, optical materials, film roll, aluminum foil roll, fabric, laminated, coated materials, etc. film.

Get an Instant Quote

Features Specifiction

Features of HCH4-1300/1700 high speed slitting machine

Main mechanical configuration:

4 sets servo motor control
Shaft less loading
Separated unwinding frame
Friction shaft rewinding
Automatic pushing
Automatic unloading
Packaging section on unloading frame

Specifiction HCH4-1300/1700 high speed slitting machine

Technical Parameter

1	Machine model	HCH4-1300	HCH4-1700
2	Slitting effective width	30-1250mm	30-1650mm
3	MaxSlitting speed	400m/min (depends on material)	400m/min (depends on material)
4	Unwinding roll diameter	Φ1000mm (shaftless-loading )	Φ1000mm (shaftless-loading )
5	Rewinding roll diameter	Φ800mm	Φ800mm
6	Unwind coil core diameter	3 inch and 6 inch	3 inch and 6 inch
7	Min Slitting width	30mm	30mm
8	Main motor power	4.5KW	4.5KW
9	Rewinding motor power	5.5KW	5.5KW
10	Total power	26kw	26kw
11	Precision	±0.03mm	±0.03mm
12	Machine weight	2700kgs.	3200kgs.
13	Installation dimension	4000mm×2880mm×2250mm	4000mm×3180mm×2250mm
