PVC Slitting Machine Has Become the Backbone of the Growth of PVC Film Packaging Market

1. Development status of PVC film

PVC film is low in price, has excellent chemical resistance and insulation properties. It is very good for signage panels. The global usage of PVC film ranks second among various synthetic materials. It is also a very marketable material. It is estimated that by 2025, the global PVC film packaging market value will reach 269.6 billion US dollars. To further develop the PVC film packaging market, we must first start with the PVC slitting machine. Therefore, the PVC slitting machine has become the backbone of the growth of the PVC film packaging market.

2. PVC slitting machine produced by Liangye

As a professional supplier of PVC slitting machines, RUIAN LOYAL MACHINERY CO.,LTD has updated its equipment many times to meet the needs of customers. The following will introduce several high-quality machines that can slit PVC:

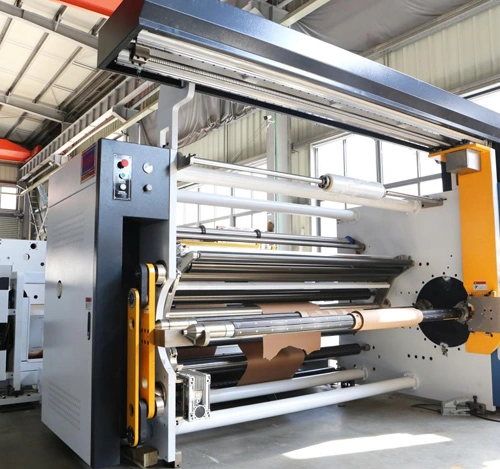

1) LYS-K1300 / 1600 flexible film high-speed slitting machine (as shown in Figure 1)

It can slit and rewind flexible coils (PET, OPP, PVC, PE, etc.). With ergonomic design, it is a high-precision automatic processing equipment, tension closed-loop control, and PLC real-time monitoring. Its unique structural design reduces unnecessary after-sales costs. The whole operation process uses static electricity to ensure high-speed rewinding quality.

Machine model LYS-K1300 LYS-K1600

Unwinding width 1300 mm 1600 mm

Machine speed 600m/min 600m/min

Winding diameter Φ800mm Φ800mm

Rewinding diameter 2× Φ600mm 2× Φ600mm

2) HC-C650 / 1300 / 1600A (Figure 2)

This machine is suitable for slitting and rewinding PVC materials. The length can be automatically adjusted, and the length can be set and automatically stopped to ensure product stability. The drive adopts hard alumina rod, which can protect the material and prevent scratches.

Machine model HC-C650A HC-C1300A HC-C1600A

Unwinding width 650 mm 1300 mm 1600 mm

Standard slitting width 5-650 mm 5-1300 mm 5-1600 mm

Slitting speed 150m / min 150m / min 150m / min

Uncoiling roll diameter Φ600mm Φ1000mm Φ1000mm

Rewinding diameter Φ600mm Φ600mm Φ600mm

Main motor power 11 kW 11 kW 11 kW

Machine weight 2500 kg 3000 kg 3500 kg

Installation size 2500 * 1850 * 1800 mm 3150 * 2500 * 1800 mm 3150 * 2800 * 1800 mm
